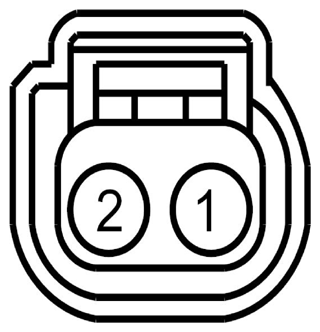

Camshaft Position 21 (CMP21) Sensor Connector End View (C1613)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | RE429 (GY-OG) | 20 | CTRL MOD. - POWERTRAIN # VARIABLE RELUCTANCE SENSOR (VRSRTN) (CAMSHAFT POSITION) | 3.7L |
| 2 | VE707 (VT) | 20 | SENSOR - CAMSHAFT POSITION BANK 2 IN+EX/IN (CMP21) [CID-H] (CID2) | 3.7L |
| Available Pigtail Kits | |
|---|---|

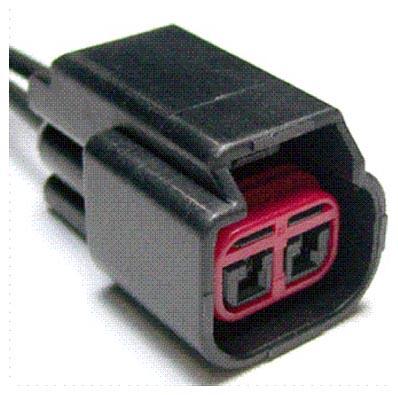

| Pigtail Kit Part Number WPT-759 | Service Part Number: 3U2Z-14S411-SLA Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses
|

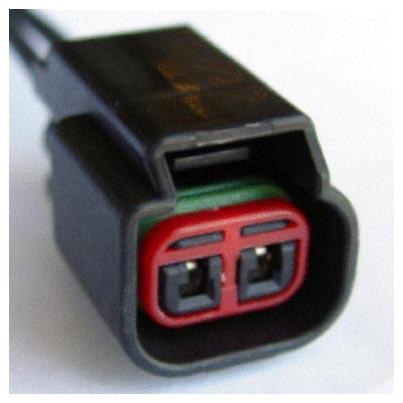

| Pigtail Kit Part Number WPT-986 | Service Part Number: 3U2Z-14S411-SLB Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses
|
