Brake Shift Interlock Connector End View (C2008)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

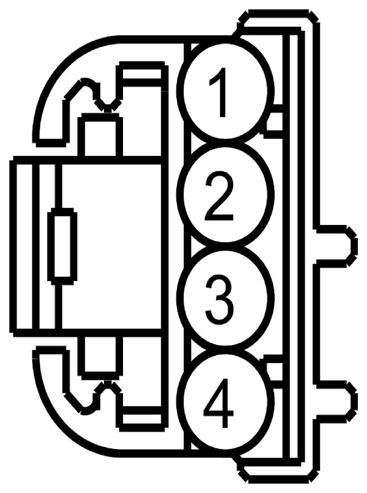

Fig 1: Brake Shift Interlock Connector End View (C2008)

G08753743

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD133 (BK)	20	GROUND - PILLAR A LEFT
2	CET52 (GN)	22	SWITCH - TRANSMISSION PARK DETECT
3	CDC41 (WH)	22	SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL)
4	CET53 (BU-OG)	20	CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK

Available Pigtail Kits

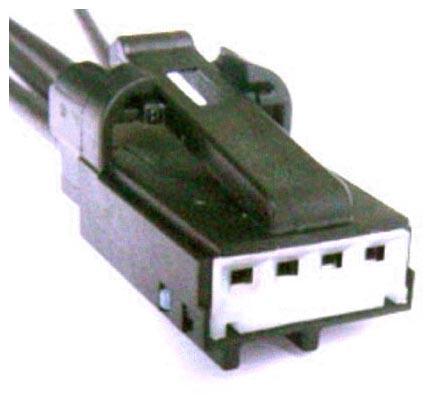

Pigtail Kit Part Number WPT-874	Service Part Number: 6U2Z-14S411-JA Gauge: 18 Pin material: Tin Cavities: 4 Vehicle Uses Relay - Oil Level Sensor - Compass Sensor - Turbine Shaft Speed Sensor - Turbo Intake Pressure/Temperature

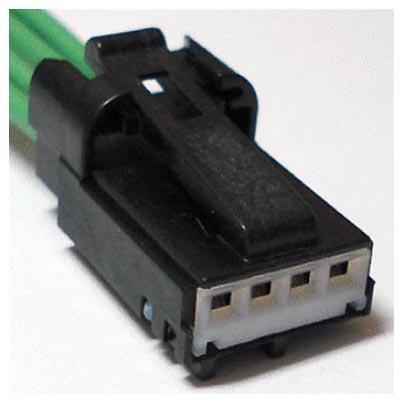

Pigtail Kit Part Number WPT-982	Service Part Number: 6U2Z-14S411-JB Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses Module - Auto Lamps Module - Front Interface Sensor - EATC In Car Temperature Sensor - Sunload Solenoid - Brake Shift Park Interlock Switch - Door Lock (LH) Switch - Door Lock (RH)
