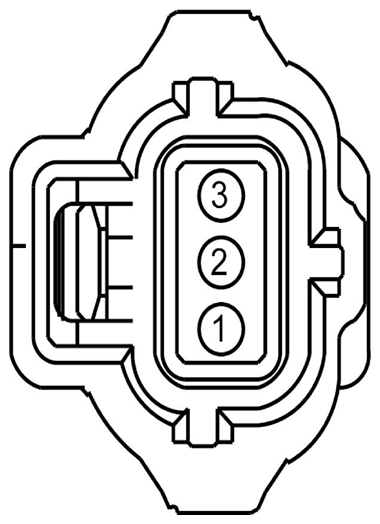

Brake Fluid Level Switch Connector End View (C124)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | GD120 (BK-GN) | 20 | GROUND - FENDER FRONT LEFT | |
| 2 | CMC19 (GY-VT) | 20 | SWITCH - LOW LEVEL BRAKE FLUID | |
| 3 | RMC19 (YE-GY) | 20 | SWITCH - LOW LEVEL BRAKE FLUID (CONTINUITY CHECK) |
| Available Pigtail Kits | |
|---|---|

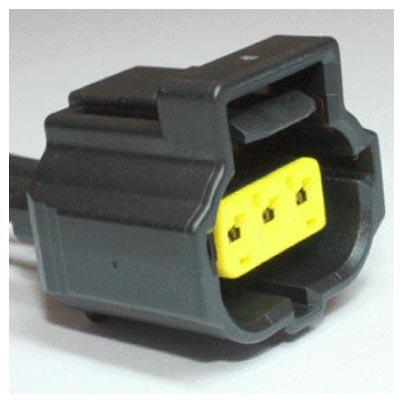

| Pigtail Kit Part Number WPT-118 | Service Part Number: 1U2Z-14S411-TA Gauge: 14 Pin material: Tin Cavities: 3 Vehicle Uses
|

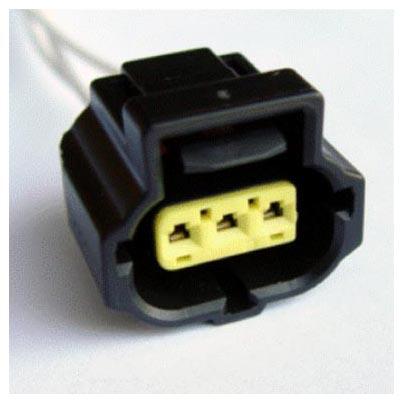

| Pigtail Kit Part Number WPT-777 | Service Part Number: 3U2Z-14S411-ESAA Gauge: 18 Pin material: Gold Cavities: 3 Vehicle Uses
|
