Brake Booster Sensor Connector End View (C149)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Brake Booster Sensor Connector End View (C149)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	VCA22 (GN-BN)	20	CTRL MOD. - SOLENOID IVD ACTIVE BOOSTER
2	GD120 (BK-GN)	20	GROUND - FENDER FRONT LEFT
3	CCA22 (GY-YE)	20	CTRL MOD. - SOLENOID IVD ACTIVE BOOSTER

Available Pigtail Kits

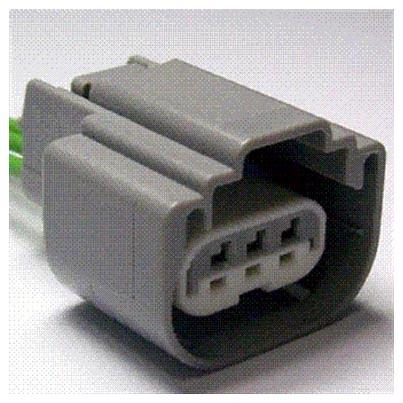

Pigtail Kit Part Number WPT-1337	Service Part Number: 9U2Z-14S411-AB Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses Sensor - Brake Booster Travel Sensor - Brake Pressure Sensor - Brake Vacuum Sensor - Manifold Absolute Pressure (MAP) Sensor - Occupant Classification

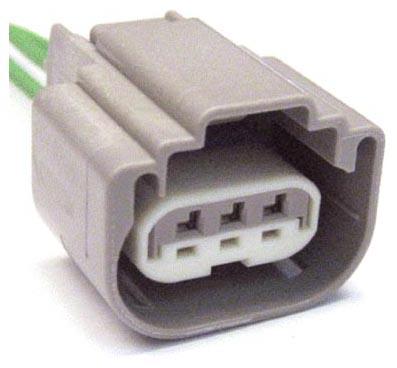

Pigtail Kit Part Number WPT-927	Service Part Number: 9U2Z-14S411-AA Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses Sensor - Brake Pressure Sensor - Manifold Absolute Pressure (MAP)
