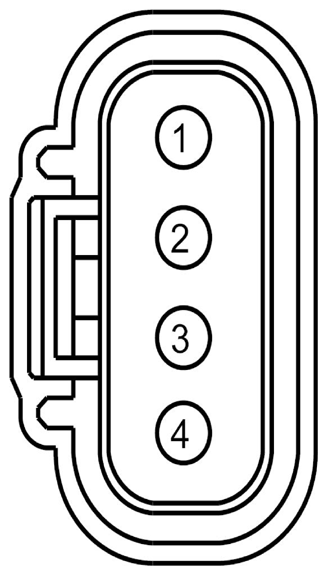

Blower Motor Resistor Connector End View (C2185)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
CH428 (GN-WH) |
14 |
SWITCH - FRONT BLOWER # POSITION 2 (MEDIUM LOW) |
|
| 2 |
CH426 (YE-OG) |
14 |
SWITCH - FRONT BLOWER # POSITION 0 (OFF OR IDLE) |
|
| 3 |
CH429 (GY-BN) |
12 |
SWITCH - FRONT BLOWER # POSITION 3 (MEDIUM HIGH) |
|
| 4 |
GD138 (BK-WH) |
14 |
GROUND - PILLAR A RIGHT |
|
