Blower Motor Connector End View (C2004)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

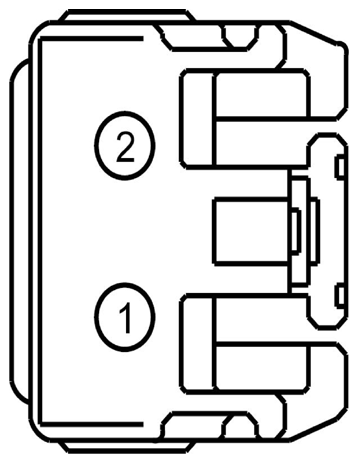

Fig 1: Blower Motor Connector End View (C2004)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CH402 (YE-GN)	10	RELAY - FRONT BLOWER
2	VH301 (YE-BU)	10	CTRL MOD. - BLOWER VARIABLE SPEED # BLOWER MOTOR	automatic a/c
2	CH426 (YE-OG)	10	SWITCH - FRONT BLOWER # POSITION 0 (OFF OR IDLE)	manual a/c

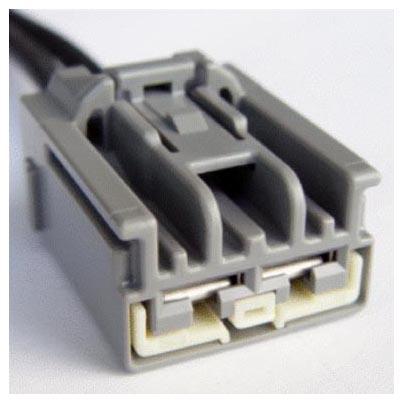

Available Pigtail Kits
Pigtail Kit Part Number WPT-236	Service Part Number: 3U2Z-14S411-PA Gauge: 10 Pin material: Tin Cavities: 2 Vehicle Uses Mirror - Vanity Module - Seat Memory Motor - Heater/AC Blower (Auxiliary) Motor - Heater/AC Blower (Front) Radio - Amplifier Resistor - Blower Motor (Front) Switch - Heater/A/C Blower (Front)
