Battery Connector End View (C1100B)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

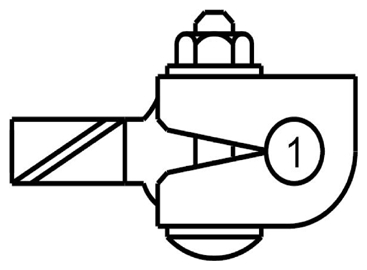

Fig 1: Battery Connector End View (C1100B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD108 (BK-VT)	4	GROUND - CHASSIS/BATTERY	6.2L
1	GD108 (BK-VT)	8	GROUND - CHASSIS/BATTERY	6.2L
