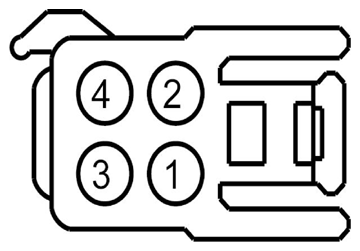

Adjustable Steering Column Motor, Telescope Connector End View (C2601)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPP22 (GY-BN) | 18 | CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE FORWARD | |
| 2 | CPP02 (BN) | 18 | CTRL MOD. - MOTOR ADJUSTABLE PEDAL REARWARD | |
| 3 | RPP06 (GN) | 22 | CTRL MOD. - SENSOR ADJUSTABLE PEDAL | |
| 4 | VPP17 (VT-BN) | 20 | SENSOR - ADJUSTABLE STEERING COLUMN TELESCOPE (FORWARD/REARWARD) |

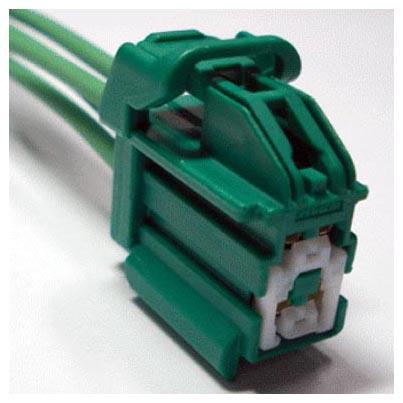

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1016 | Service Part Number: 3U2Z-14S411-FFB Gauge: 14 Pin material: Silver Cavities: 4 Vehicle Uses
|
