Section 496 (OEM Wiring Diagrams)
>>
Transmission Controls - 6R80
>>
3.7L
Transmission Controls - 6R80: 3.7L
WARNING:
This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

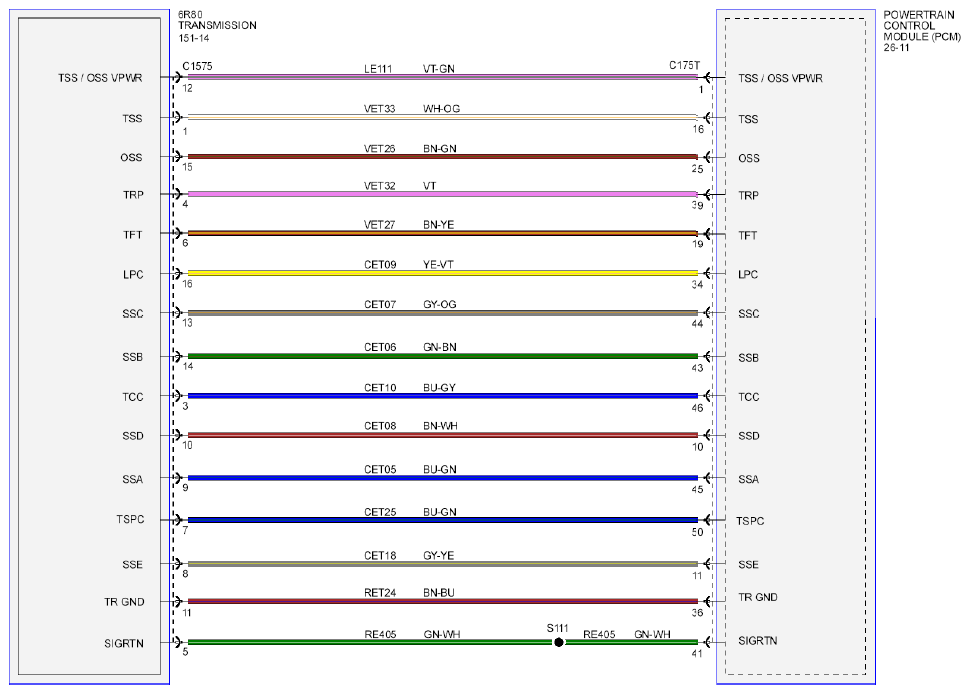

Fig 1: Transmission Controls (6R80) Circuit Diagram - 3.7L (1 Of 2)
Courtesy of FORD MOTOR CO.

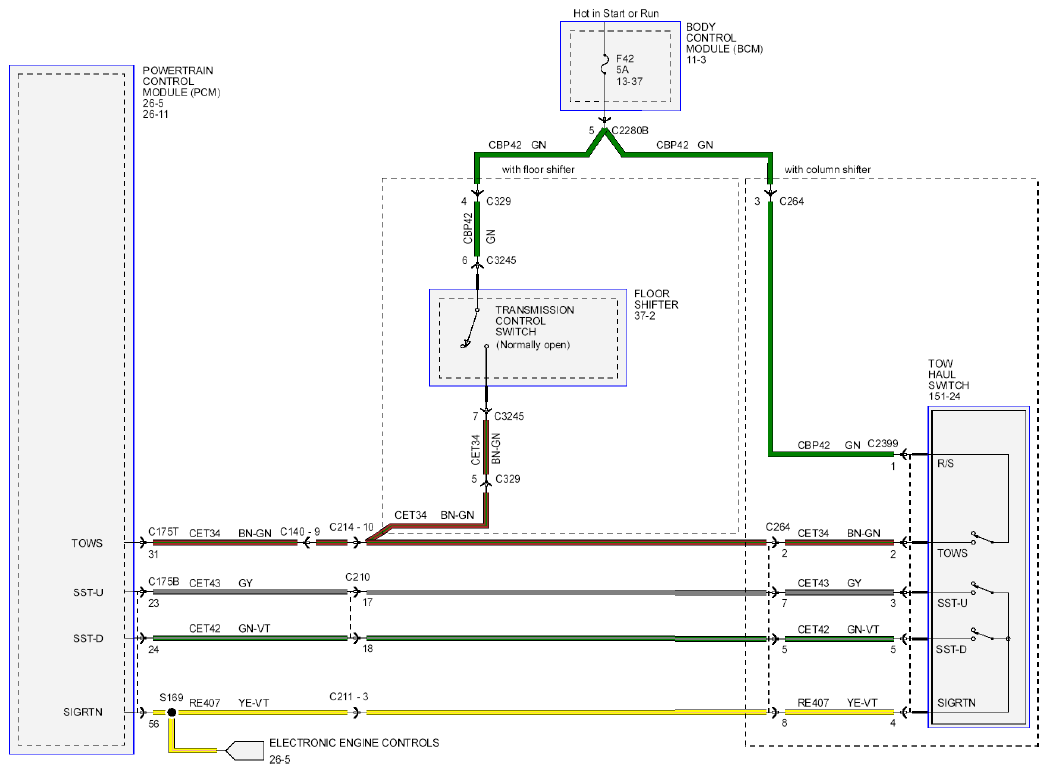

Fig 2: Transmission Controls (6R80) Circuit Diagram - 3.7L (2 Of 2)
Courtesy of FORD MOTOR CO.
