Section 496 (OEM Wiring Diagrams)
>>
Trailer/Camper Adapter
>>
Factory Installed - With Crew Chief
Factory Installed - With Crew Chief
WARNING:
This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

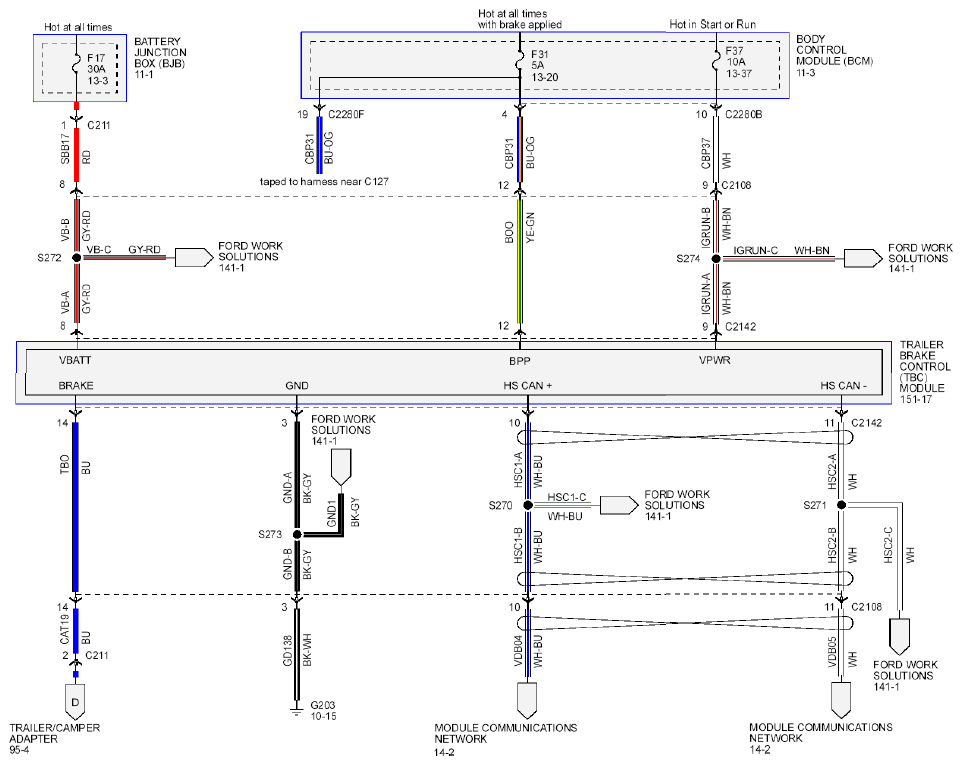

Fig 1: Trailer Camper Adapter - Circuit Diagram (Factory Installed - With Crew Chief)
Courtesy of FORD MOTOR CO.
