Reversing Lamps

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

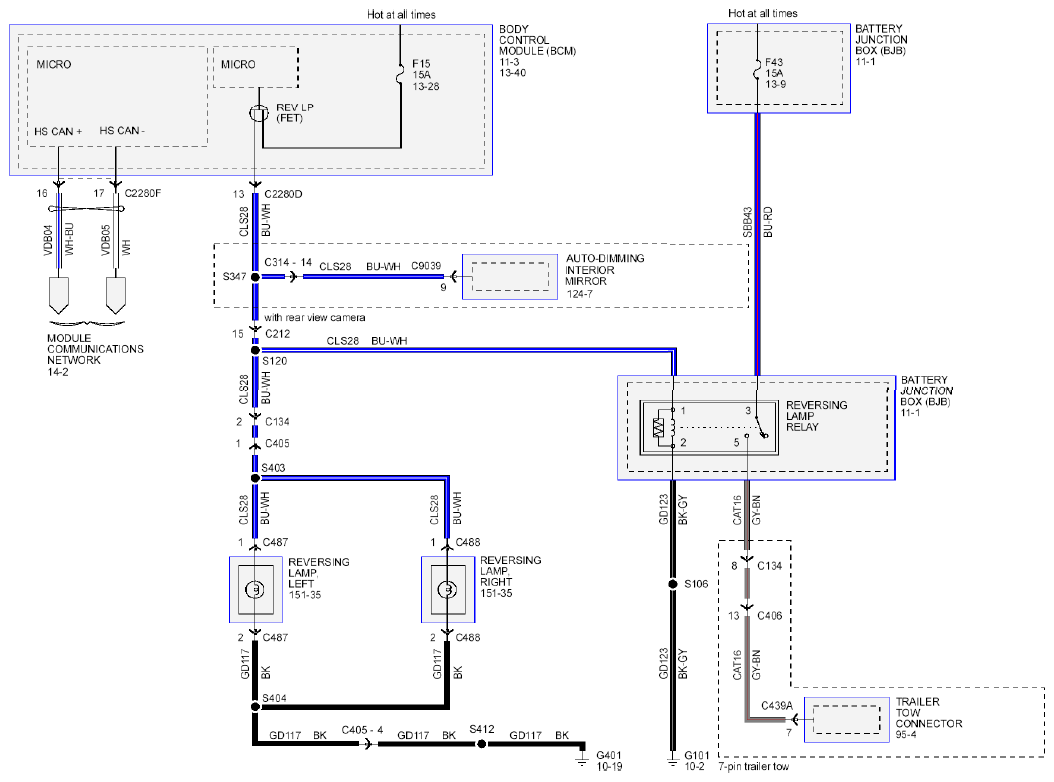

Fig 1: Reversing Lamps - Circuit Diagram
G08747191Courtesy of FORD MOTOR CO.
