Power Steering Controls: 3.5L/3.7L/5.0L

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

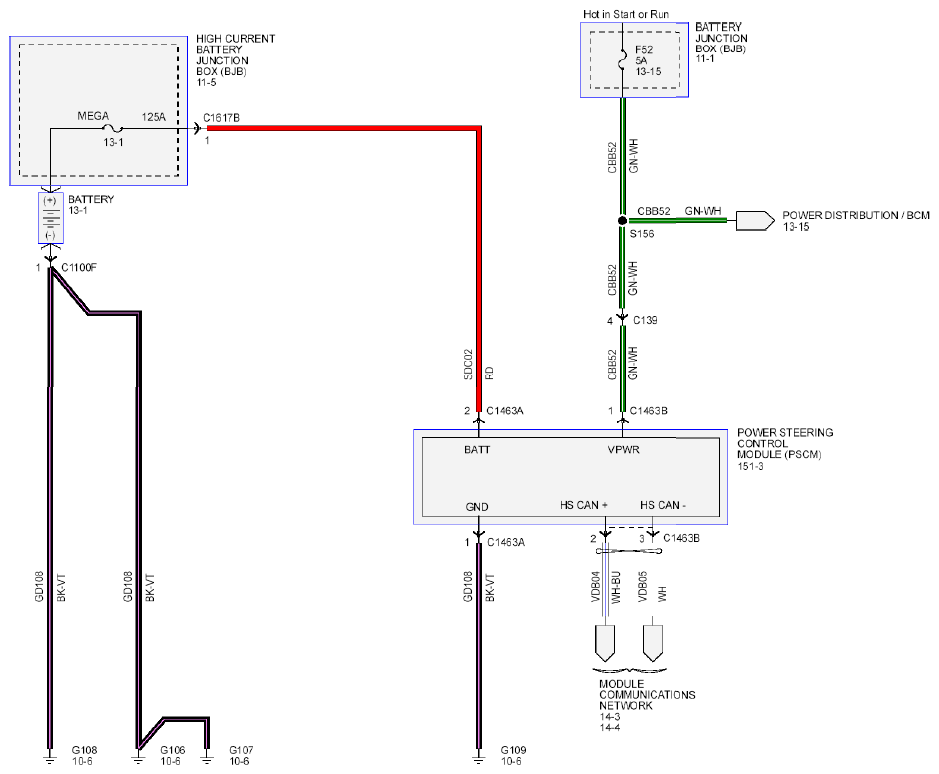

Fig 1: Power Steering Controls Circuit Diagram - 3.5L/3.7L/5.0L

Courtesy of FORD MOTOR CO.
