6-Way Power Seat Without Memory - Driver

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

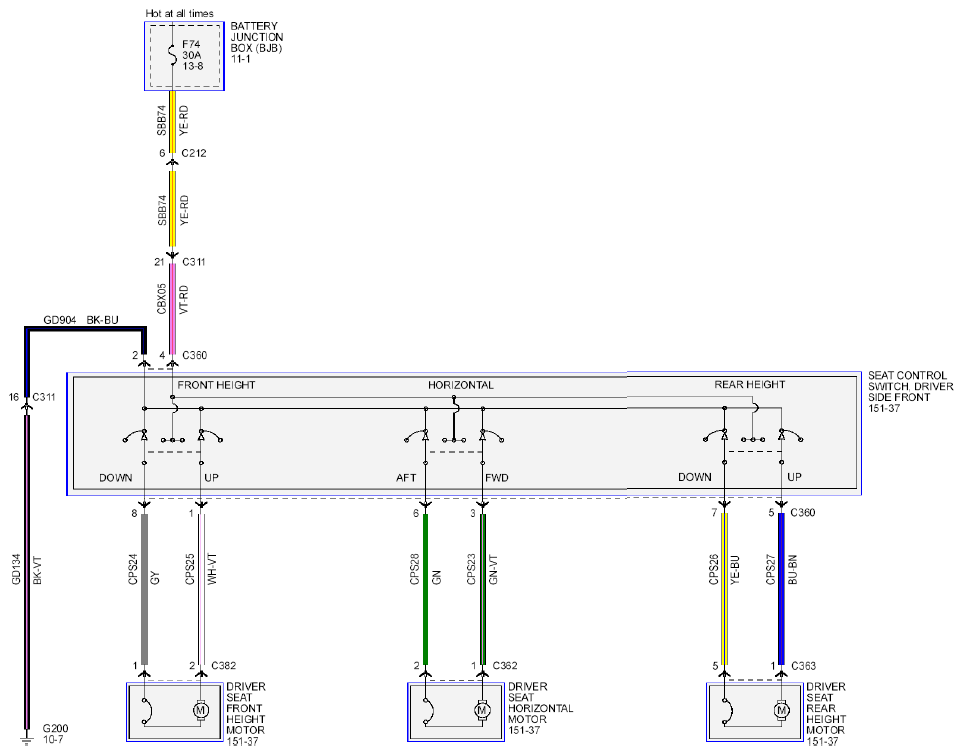

Fig 1: Driver Power Seats (6-Way Power Seat Without Memory)
G08747225Courtesy of FORD MOTOR CO.
