10-Way Power Seat - Passenger

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

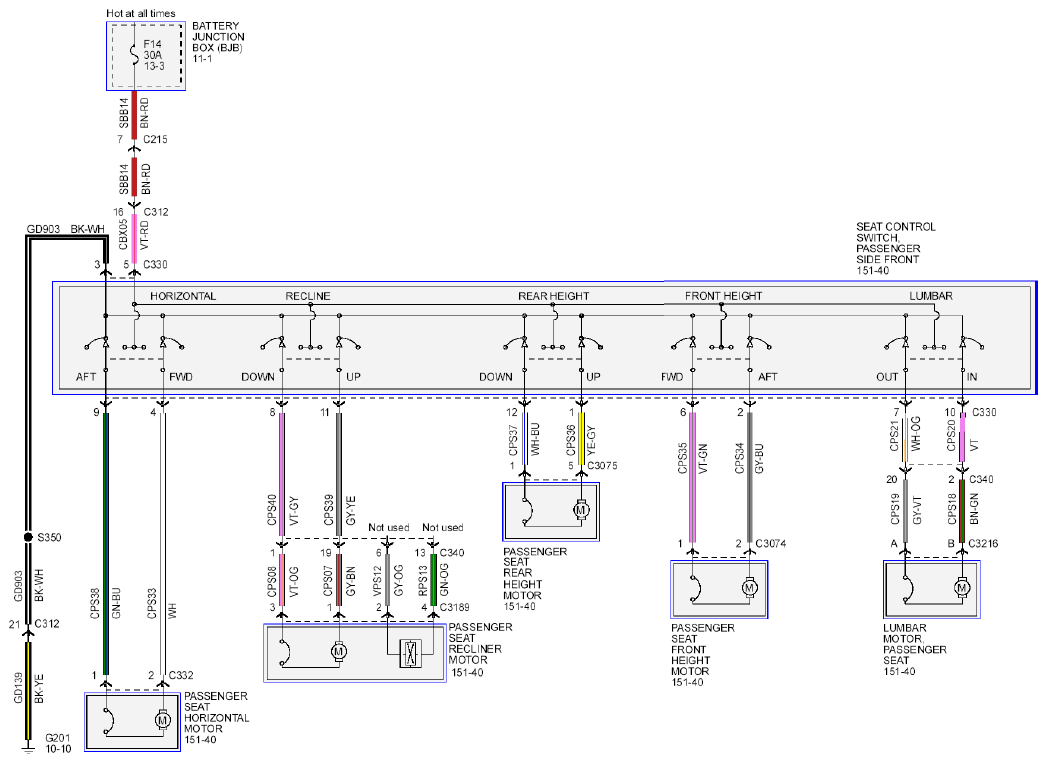

Fig 1: Passenger Power Seats (10-Way Power Seat)

Courtesy of FORD MOTOR CO.
