With Memory

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

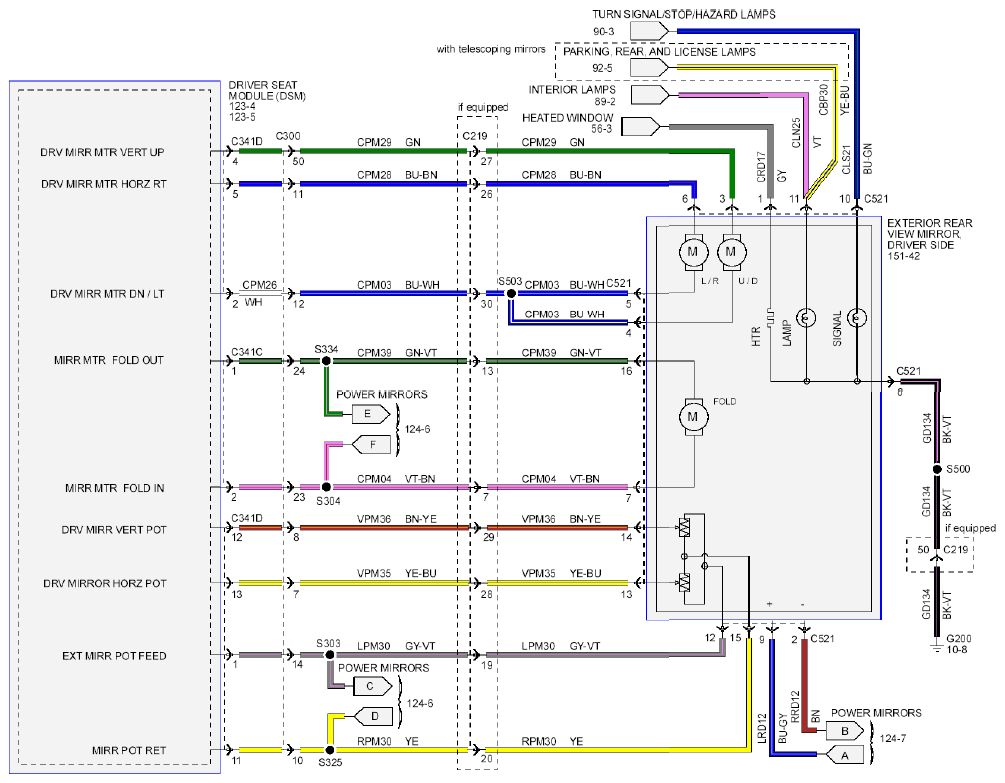

Fig 1: Power Mirrors - Circuit Diagram - With Memory (1 Of 4)

Courtesy of FORD MOTOR CO.

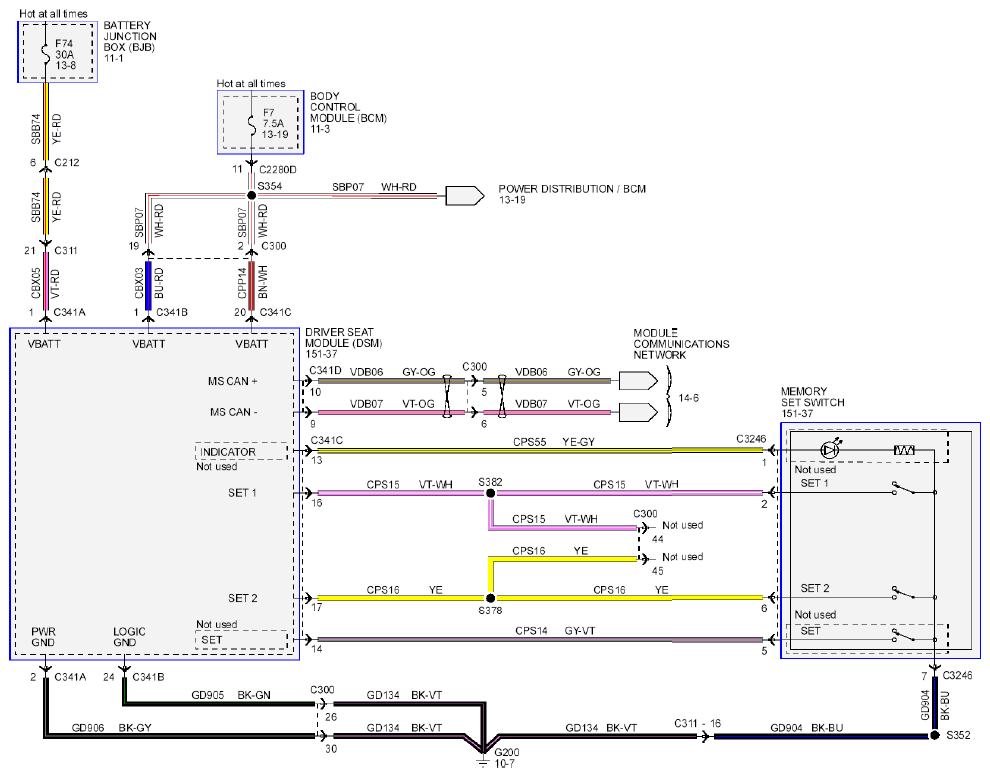

Fig 2: Power Mirrors - Circuit Diagram - With Memory (2 Of 4)

Courtesy of FORD MOTOR CO.

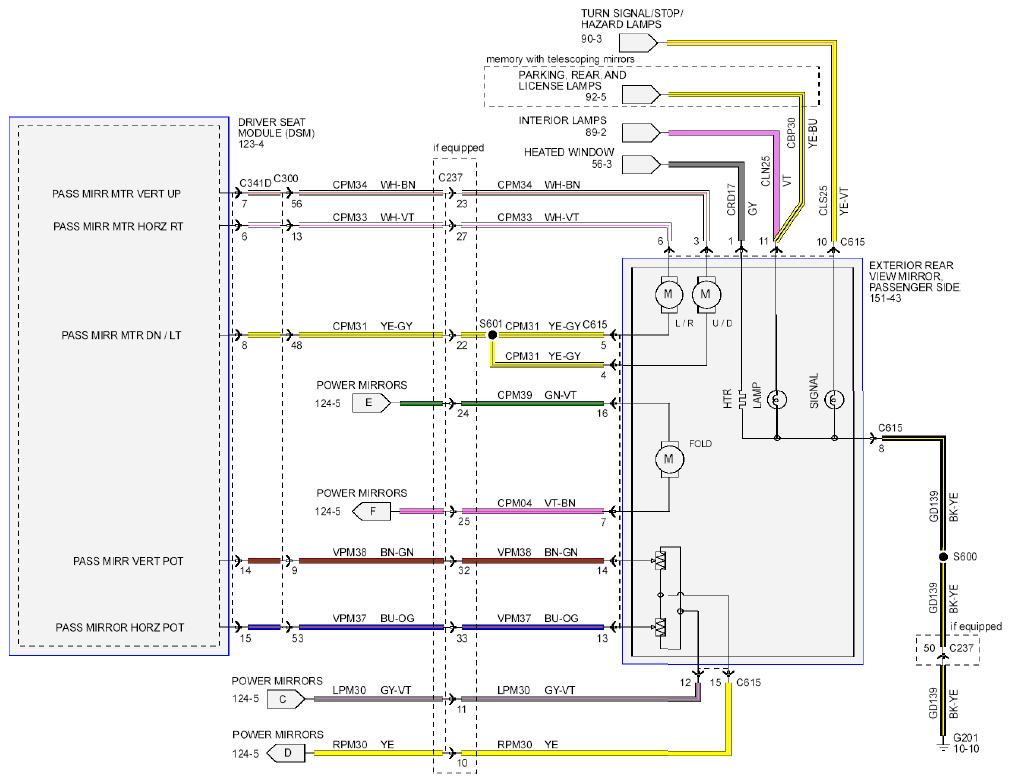

Fig 3: Power Mirrors - Circuit Diagram - With Memory (3 Of 4)

Courtesy of FORD MOTOR CO.

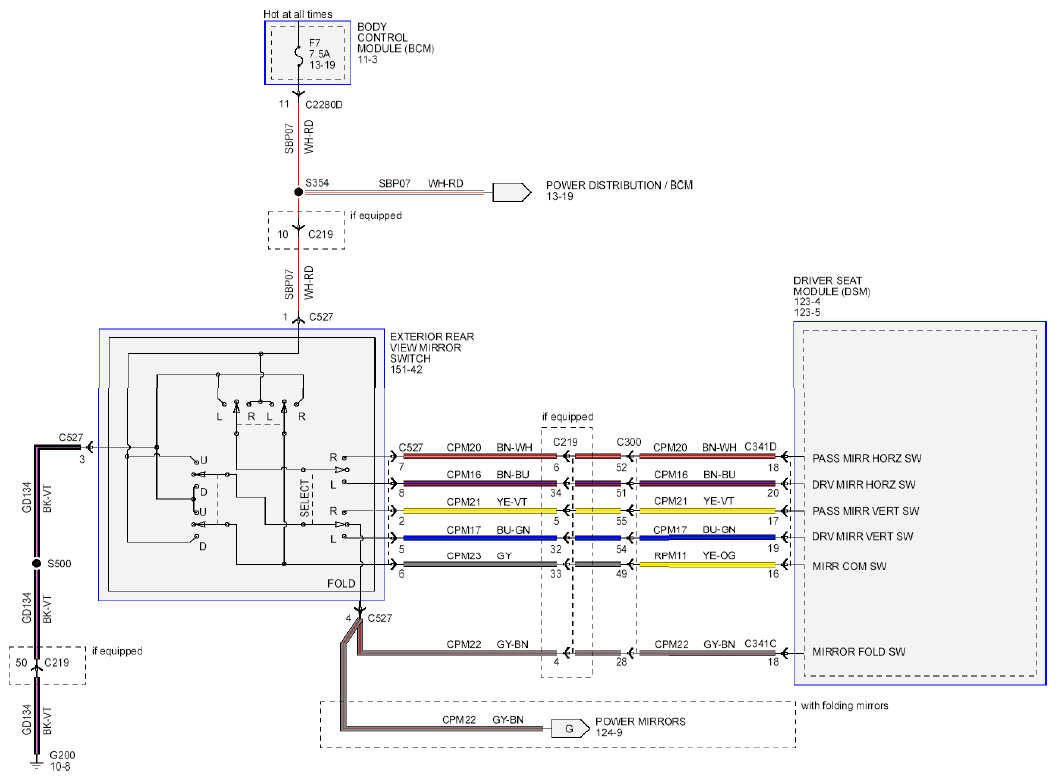

Fig 4: Power Mirrors - Circuit Diagram - With Memory (4 Of 4)

Courtesy of FORD MOTOR CO.
