Power Distribution/BCM: Notes

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

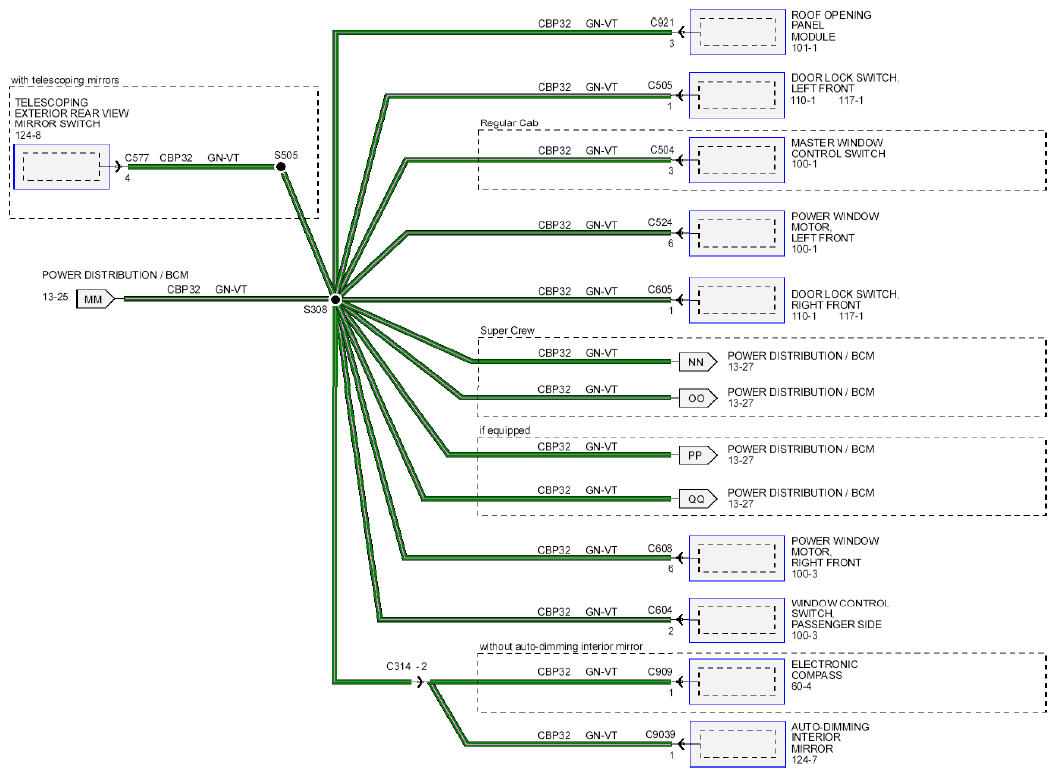

Fig 1: Power Distribution/BCM - Wiring Diagram (1 Of 13)

Courtesy of FORD MOTOR CO.

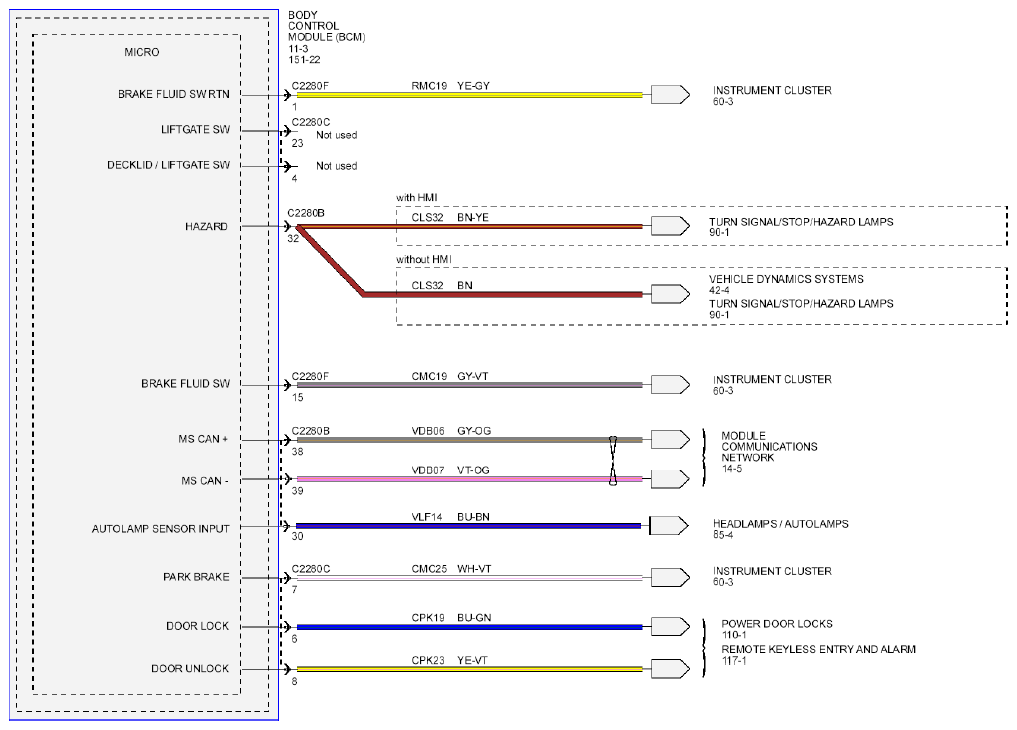

Fig 2: Power Distribution/BCM - Wiring Diagram (2 Of 13)

Courtesy of FORD MOTOR CO.

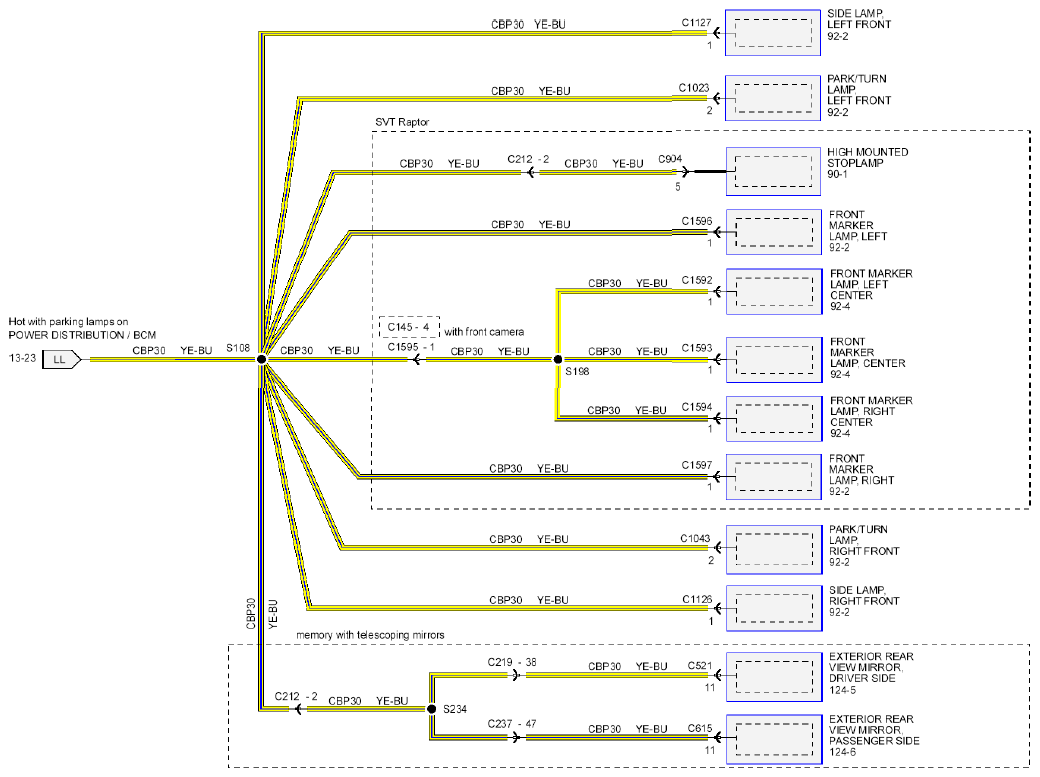

Fig 3: Power Distribution/BCM - Wiring Diagram (3 Of 13)

Courtesy of FORD MOTOR CO.

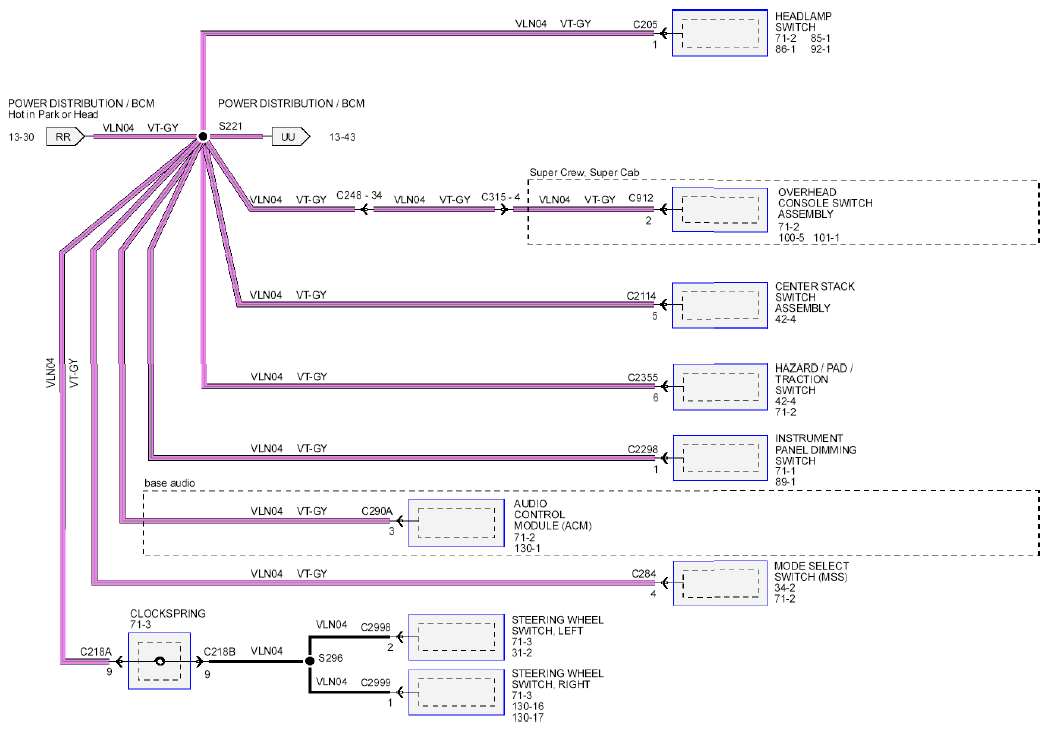

Fig 4: Power Distribution/BCM - Wiring Diagram (4 Of 13)

Courtesy of FORD MOTOR CO.

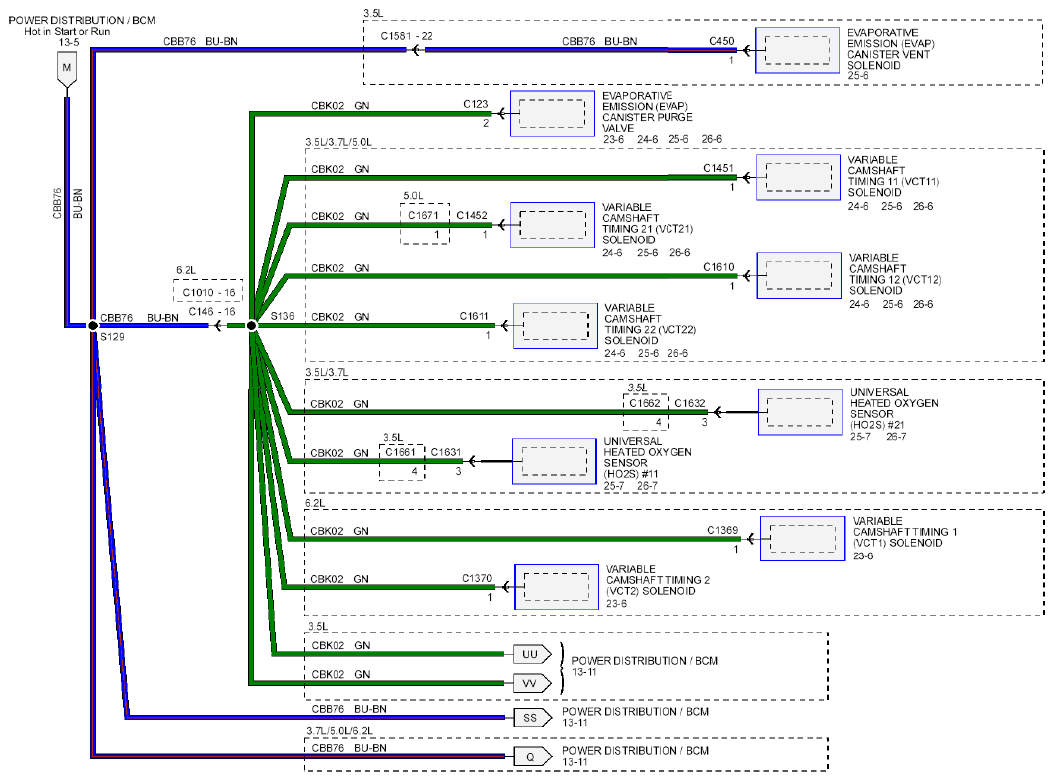

Fig 5: Power Distribution/BCM - Wiring Diagram (5 Of 13)

Courtesy of FORD MOTOR CO.

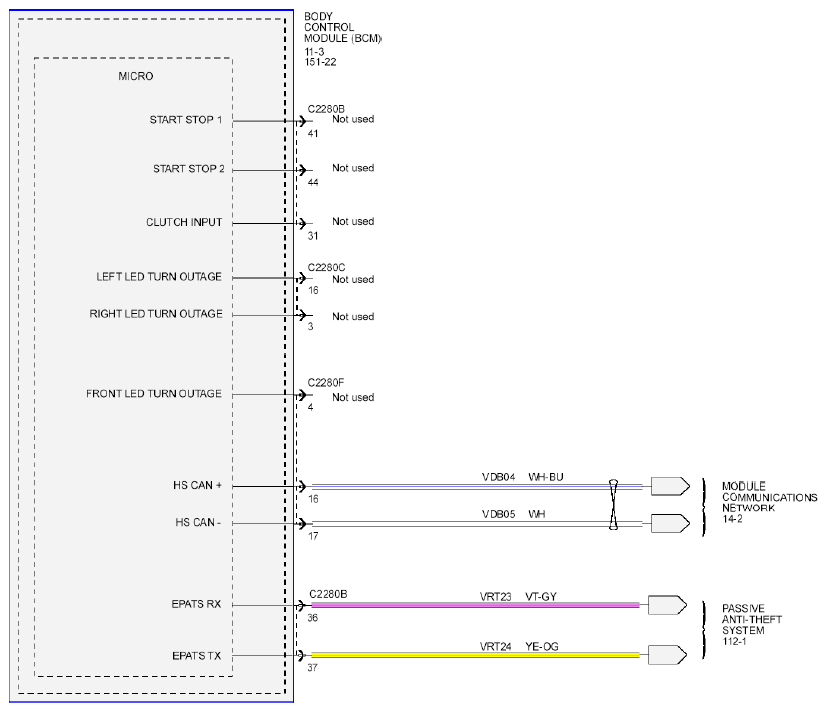

Fig 6: Power Distribution/BCM - Wiring Diagram (6 Of 13)

Courtesy of FORD MOTOR CO.

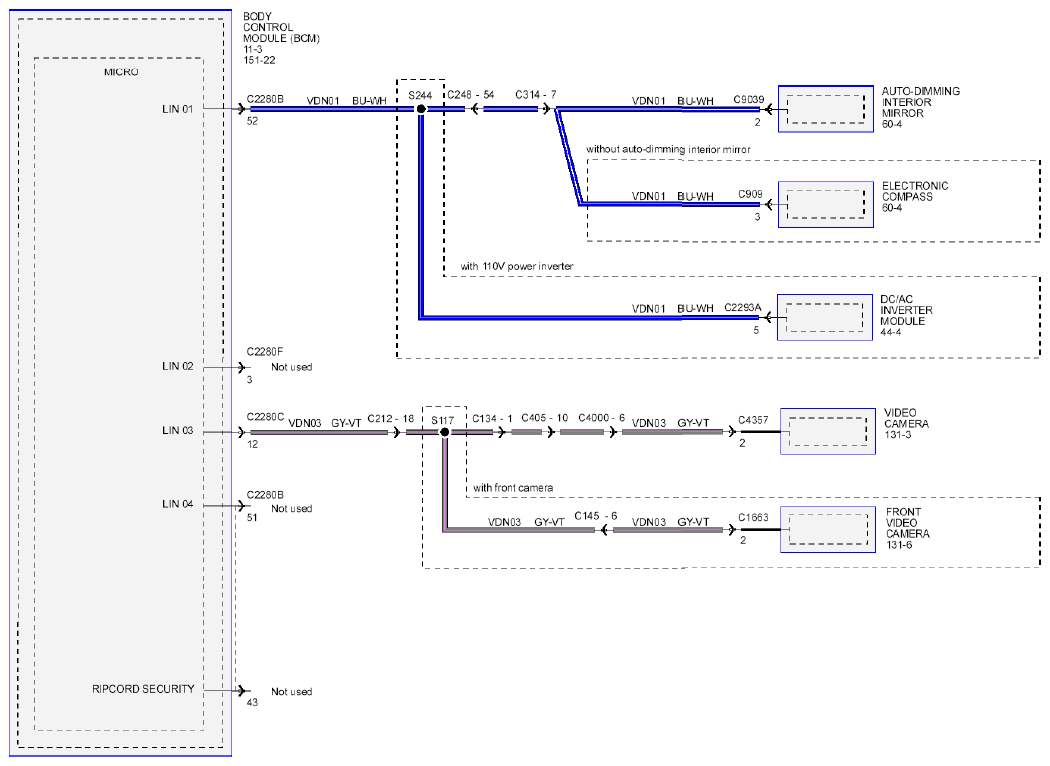

Fig 7: Power Distribution/BCM - Wiring Diagram (7 Of 13)

Courtesy of FORD MOTOR CO.

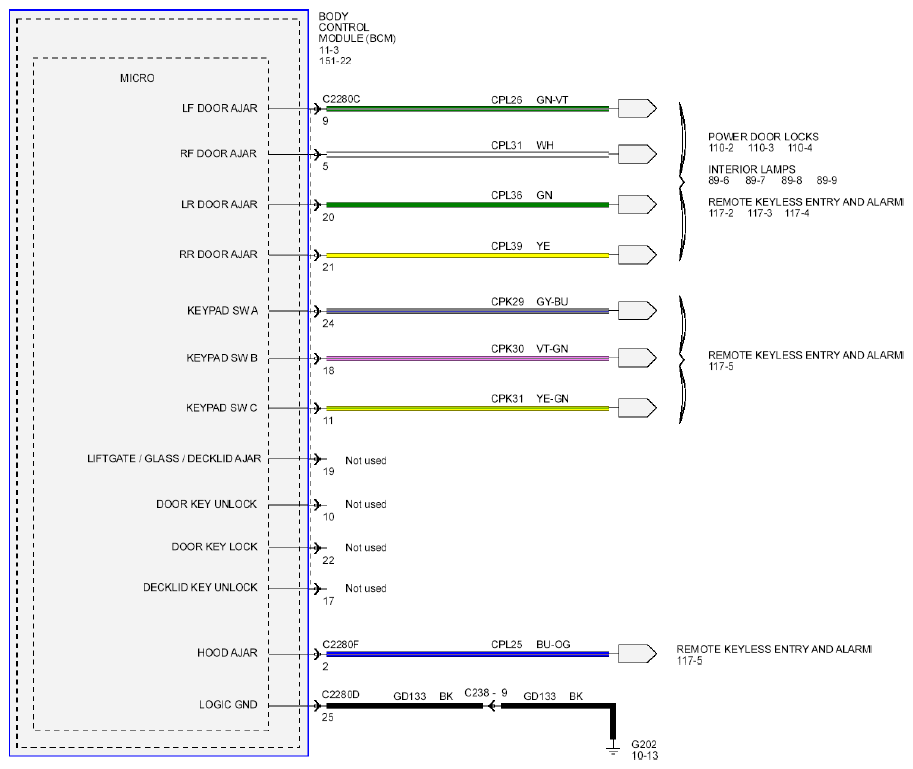

Fig 8: Power Distribution/BCM - Circuit Diagram (8 Of 13)

Courtesy of FORD MOTOR CO.

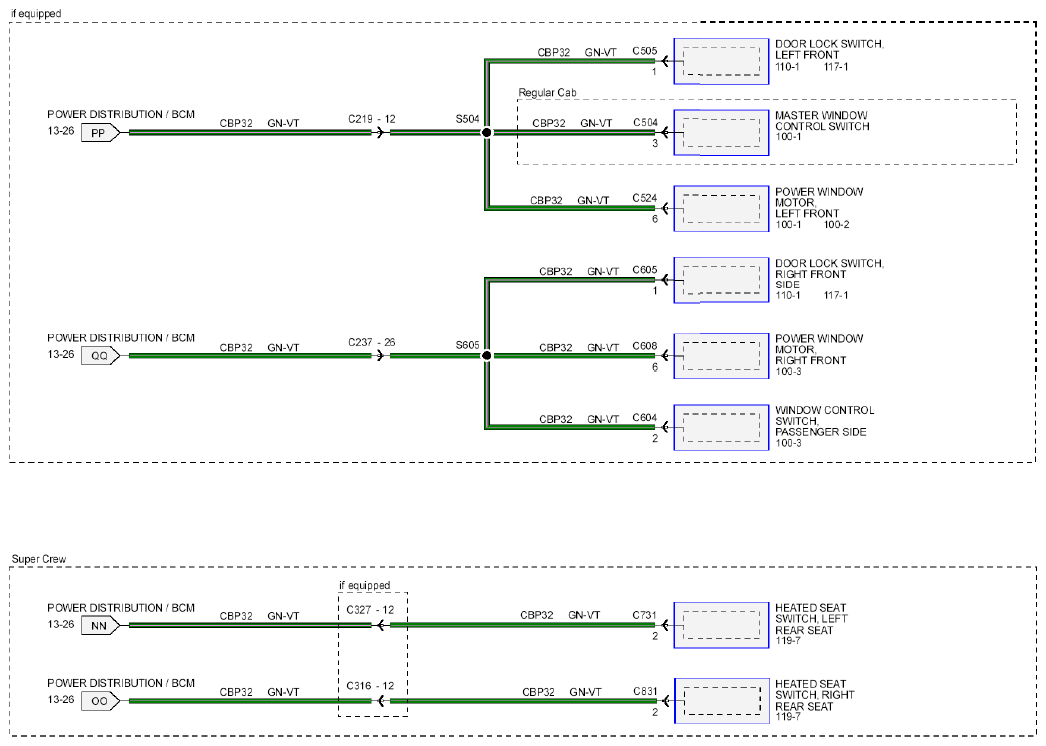

Fig 9: Power Distribution/BCM - Circuit Diagram (9 Of 13)

Courtesy of FORD MOTOR CO.

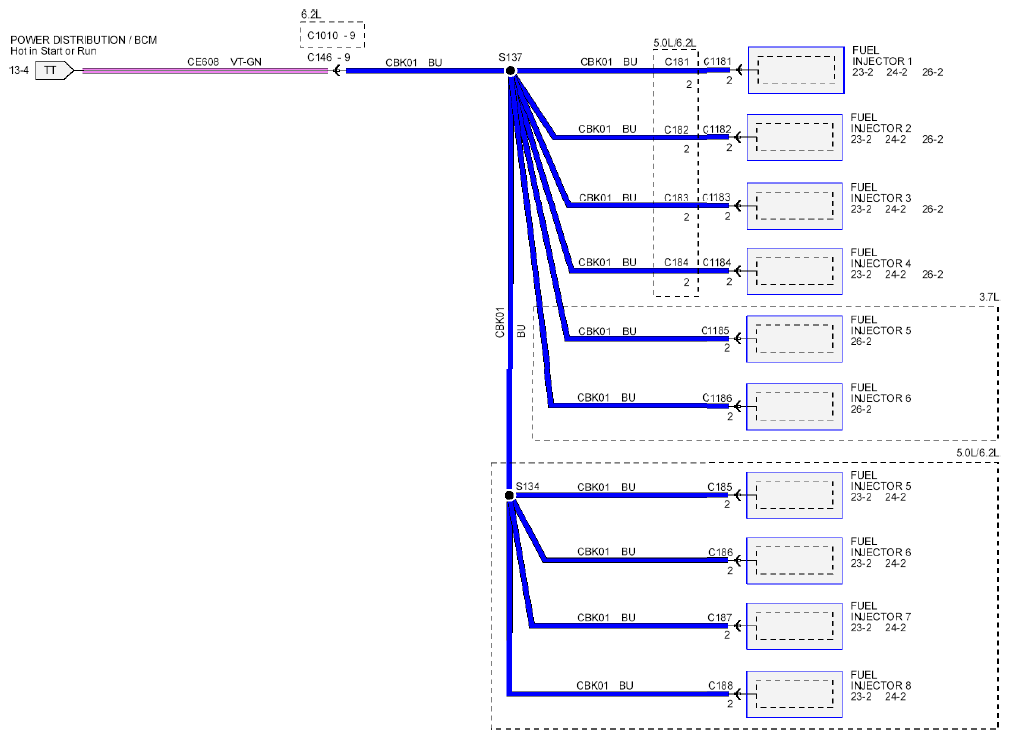

Fig 10: Power Distribution/BCM - Circuit Diagram (10 Of 13)

Courtesy of FORD MOTOR CO.

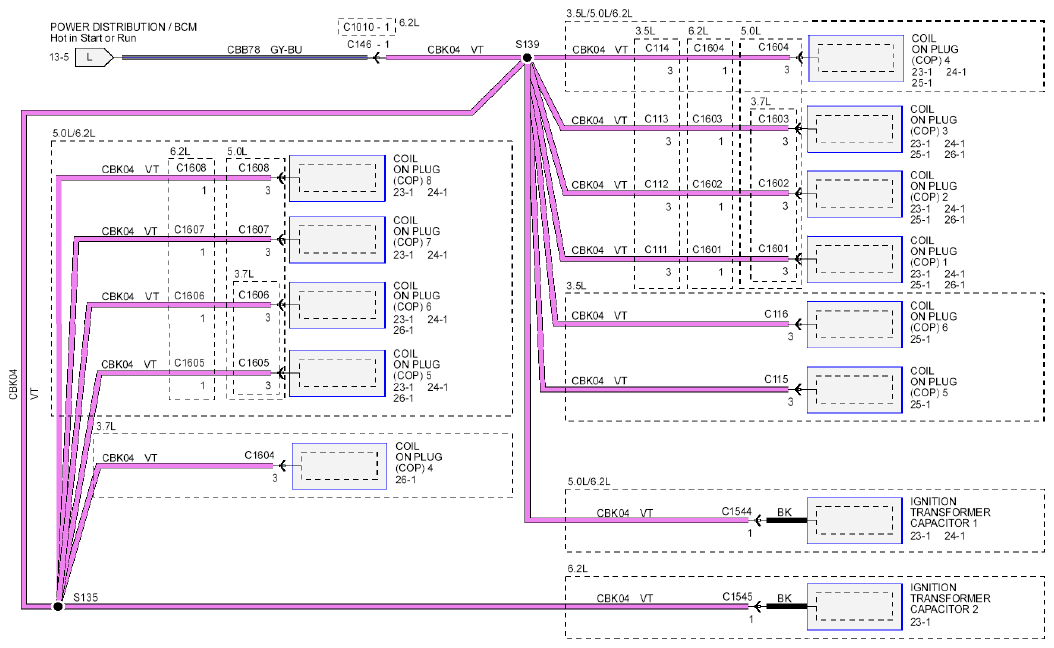

Fig 11: Power Distribution/BCM - Circuit Diagram (11 Of 13)

Courtesy of FORD MOTOR CO.

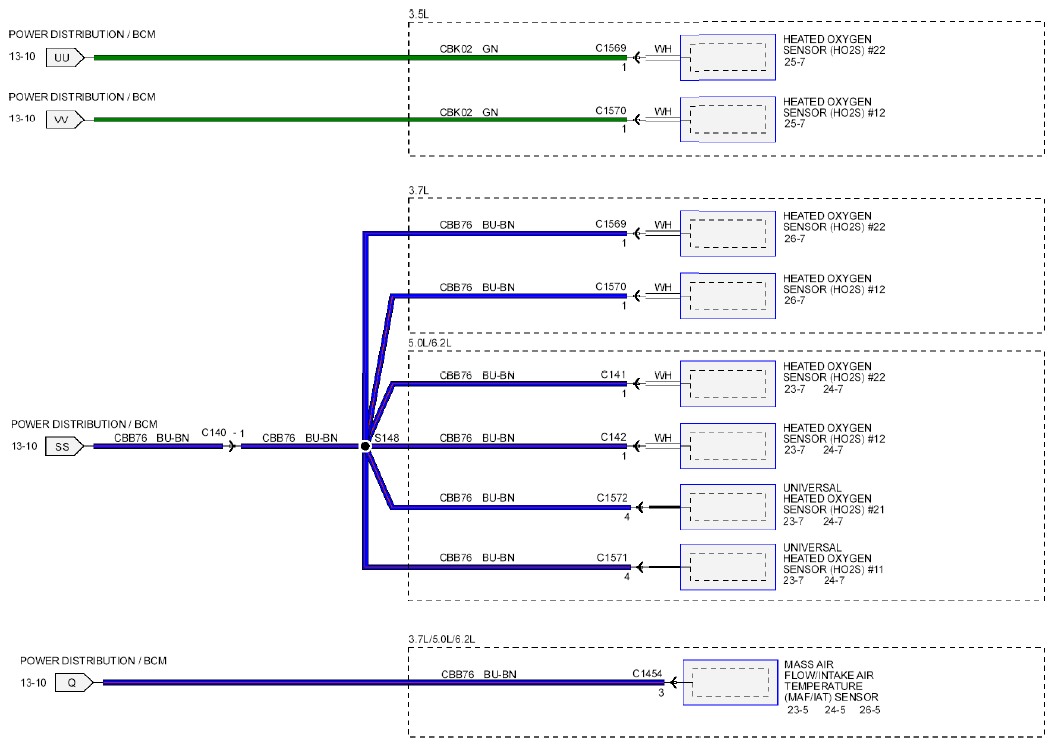

Fig 12: Power Distribution/BCM - Circuit Diagram (12 Of 13)

Courtesy of FORD MOTOR CO.

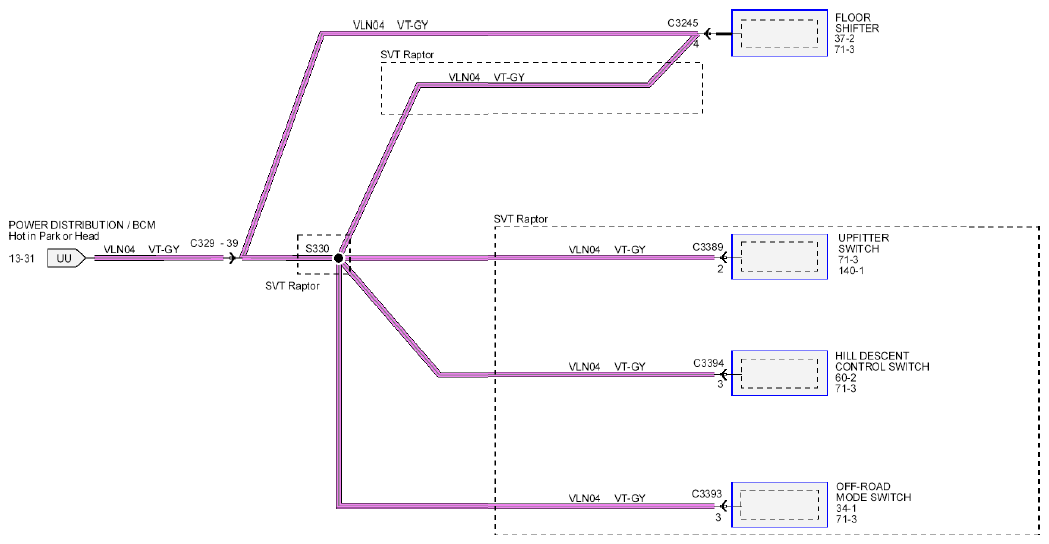

Fig 13: Power Distribution/BCM - Circuit Diagram (13 Of 13)

Courtesy of FORD MOTOR CO.
