Power Distribution/BCM: F20

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

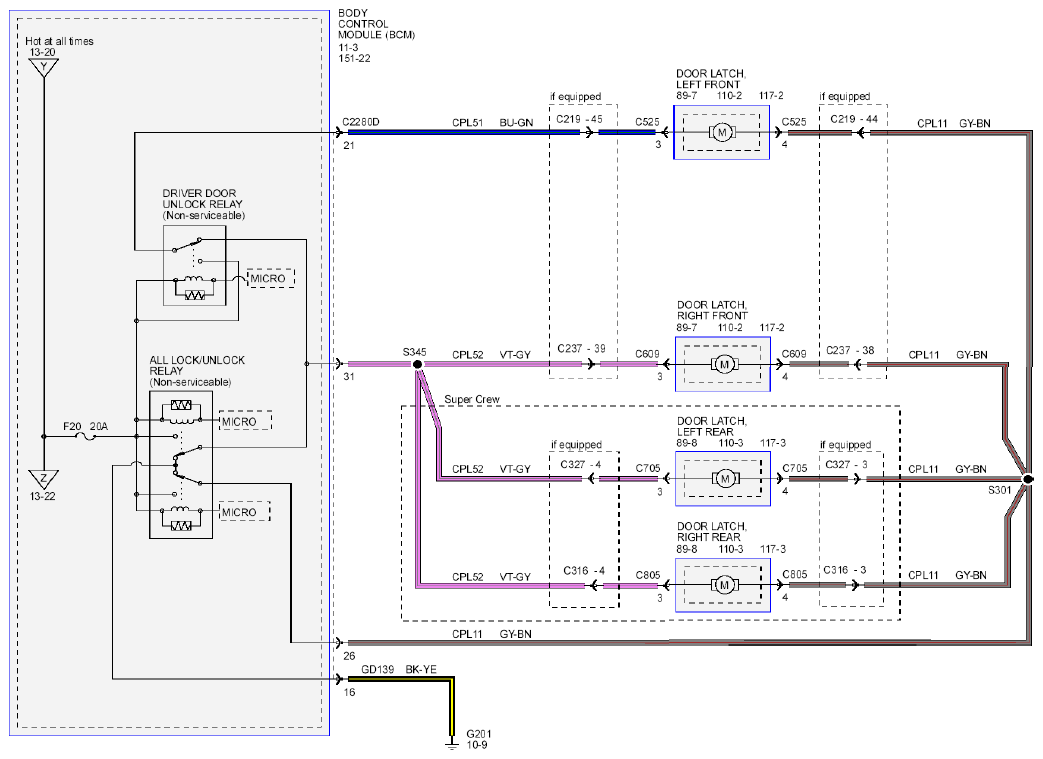

Fig 1: Power Distribution/BCM - Wiring Diagram (F20)
G08747017Courtesy of FORD MOTOR CO.
