Power Distribution/BCM: 6.2L

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

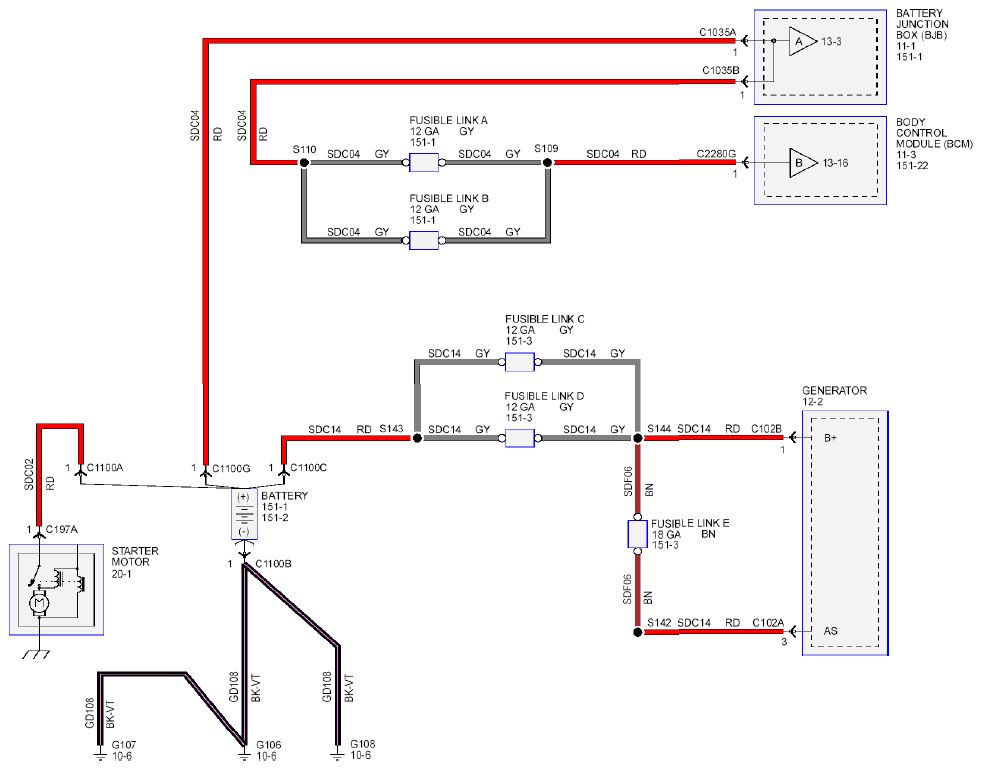

Fig 1: Power Distribution/BCM - Circuit Diagram (6.2L)
G08746998Courtesy of FORD MOTOR CO.
