SVT Raptor

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

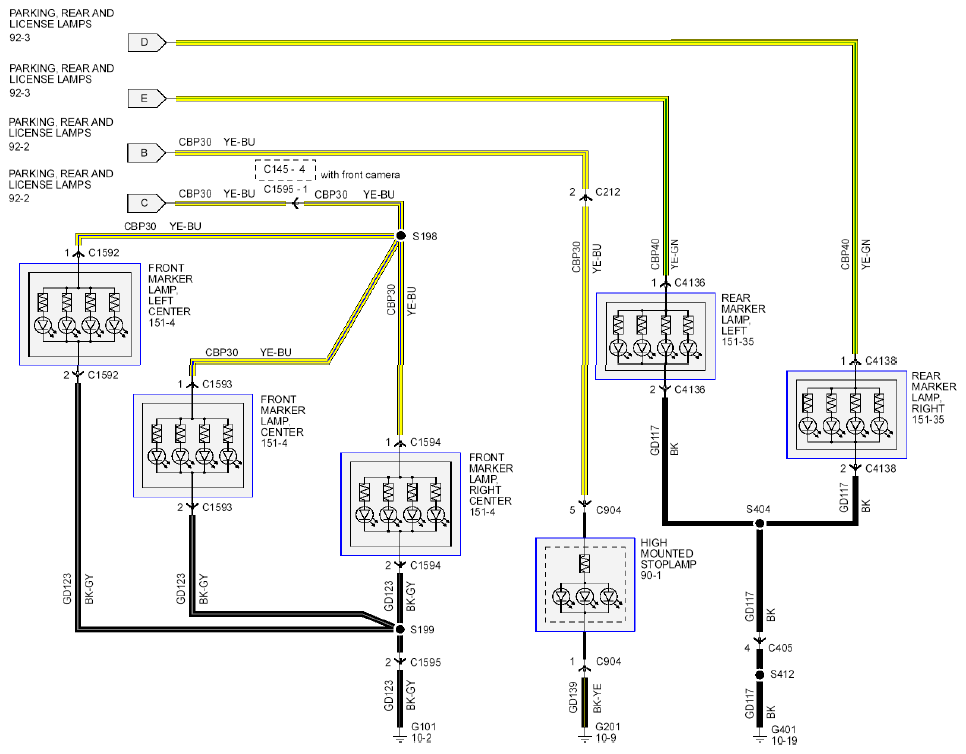

Fig 1: Parking, Rear And License Lamps - Circuit Diagram (SVT Raptor)
G08747189Courtesy of FORD MOTOR CO.
