Without Navigation

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

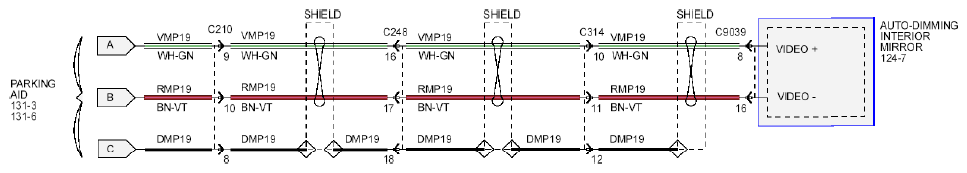

Fig 1: Parking Aid - Circuit Diagram (Without Navigation)
G08747268Courtesy of FORD MOTOR CO.
