With 4 X 2

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

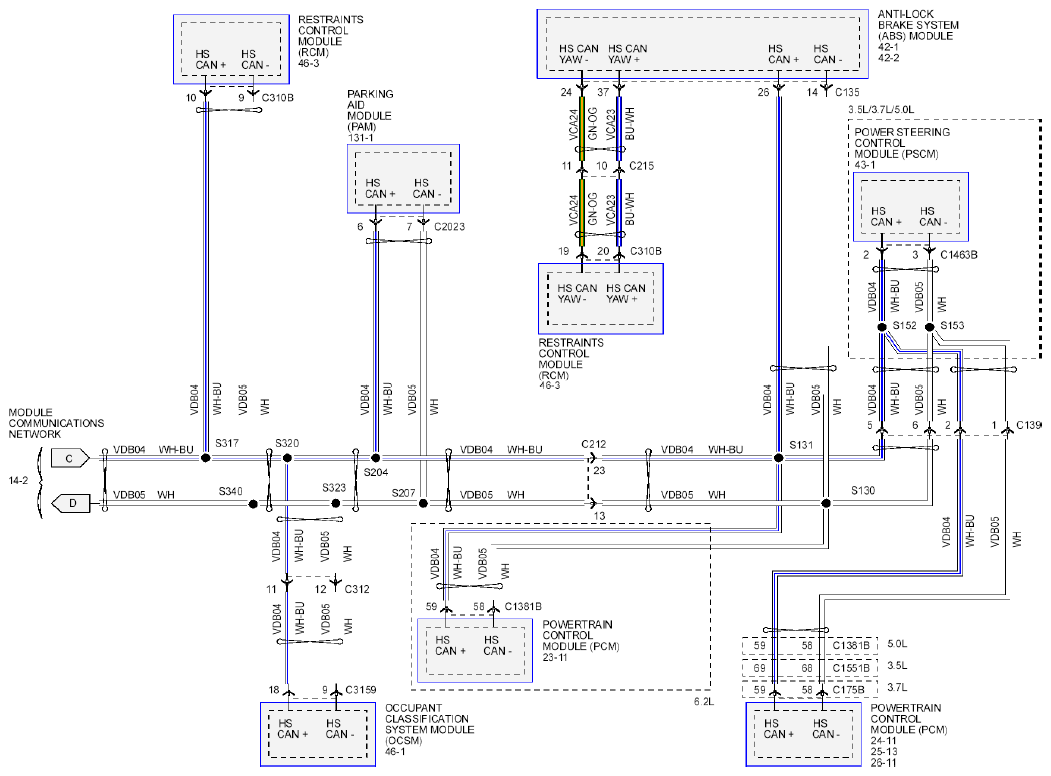

Fig 1: Module Communications Network - Wiring Diagram (With 4 X 2)
G08747042Courtesy of FORD MOTOR CO.
