Remote Mount

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

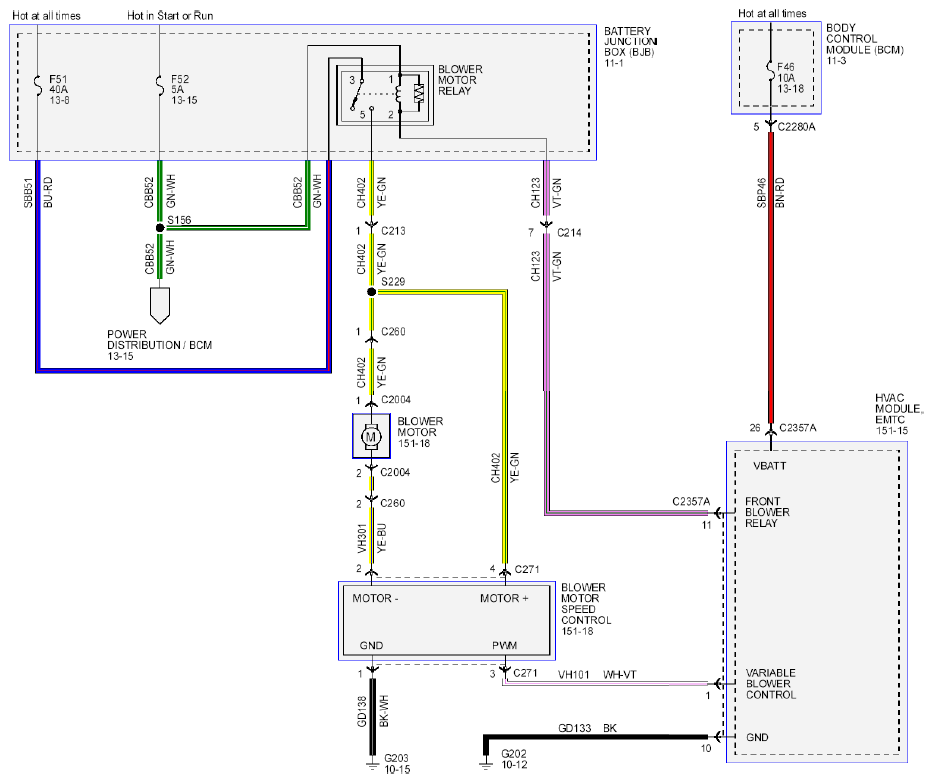

Fig 1: Manual Climate Control System - Circuit Diagram - Remote Mount (1 Of 4)

Courtesy of FORD MOTOR CO.

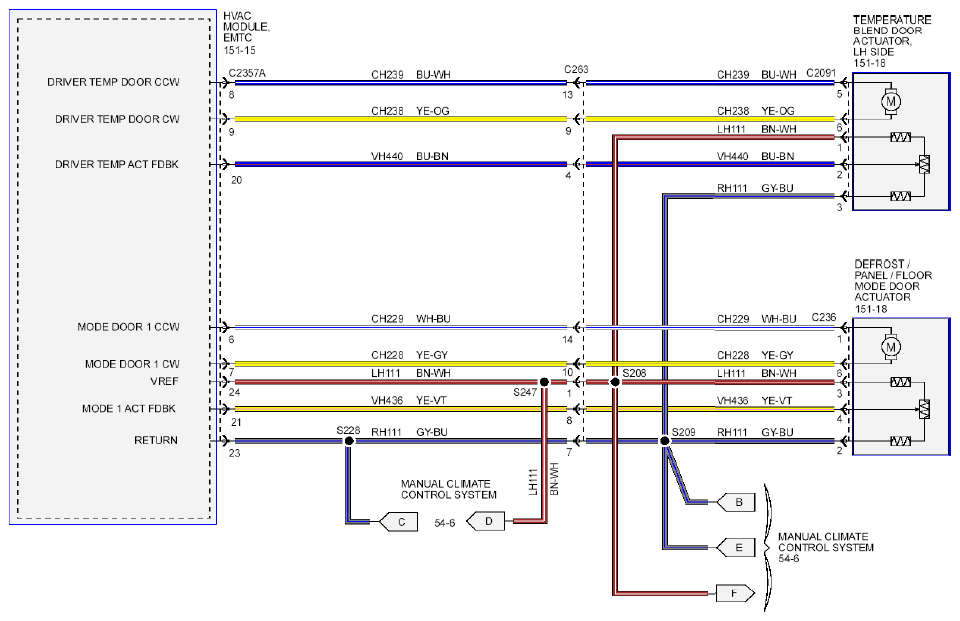

Fig 2: Manual Climate Control System - Circuit Diagram - Remote Mount (2 Of 4)

Courtesy of FORD MOTOR CO.

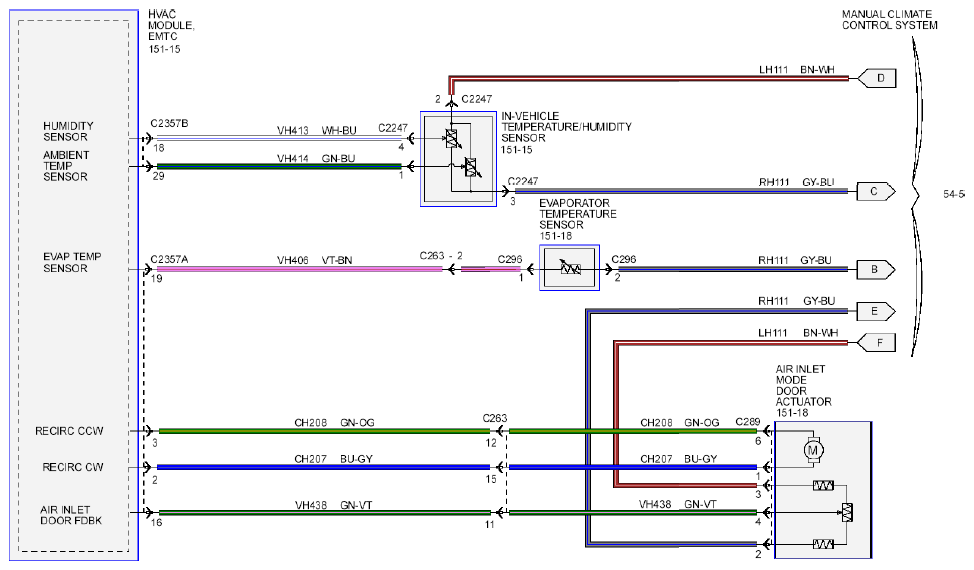

Fig 3: Manual Climate Control System - Circuit Diagram - Remote Mount (4 Of 4)

Courtesy of FORD MOTOR CO.

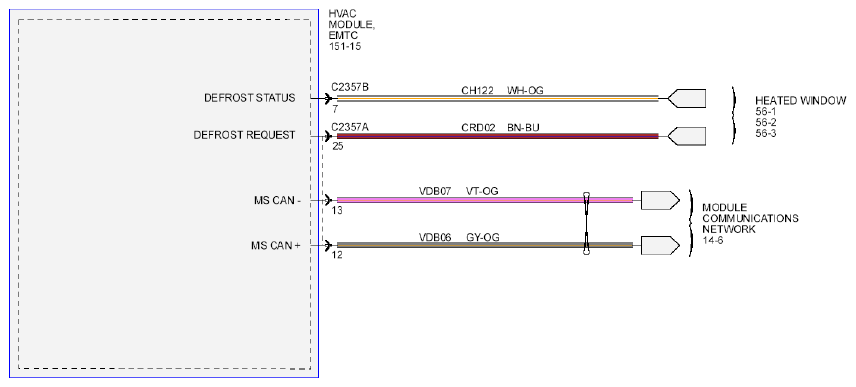

Fig 4: Manual Climate Control System - Circuit Diagram - Remote Mount (4 Of 4)

Courtesy of FORD MOTOR CO.
