Without Power Equipment - Super Cab, Regular Cab

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

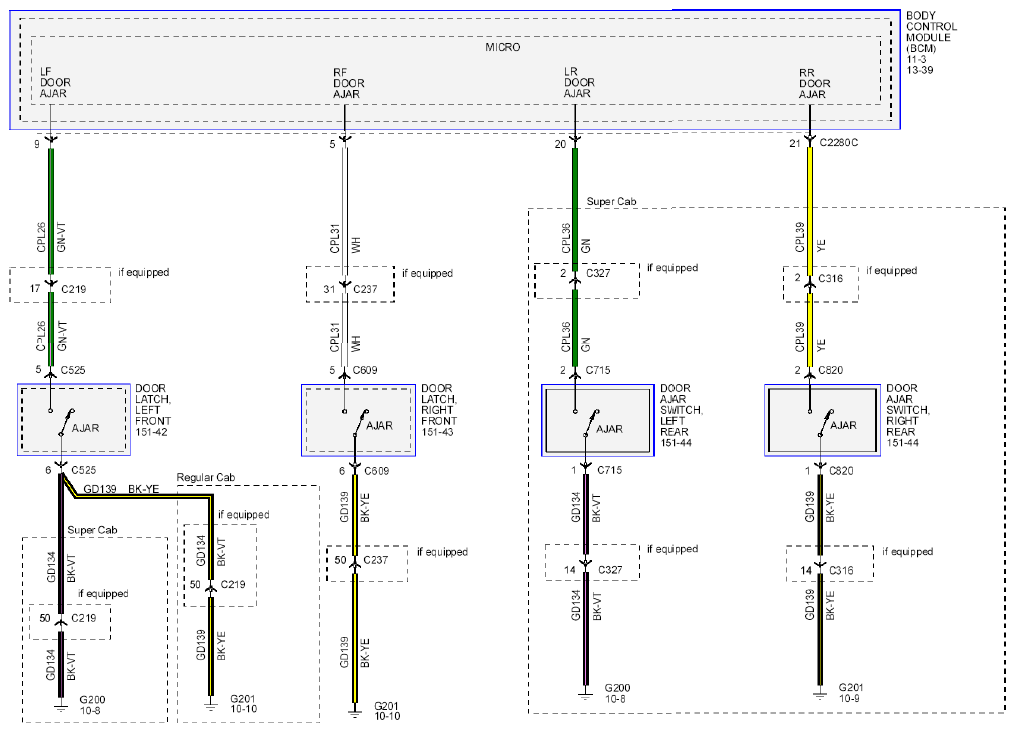

Fig 1: Interior Lamps - Circuit Diagram (Without Power Equipment-Super Cab And Regular Cab)
G08747175Courtesy of FORD MOTOR CO.
