Section 496 (OEM Wiring Diagrams)
>>
Horn/Cigar Lighter
>>
With 110 Power Inverter
With 110 Power Inverter
WARNING:
This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

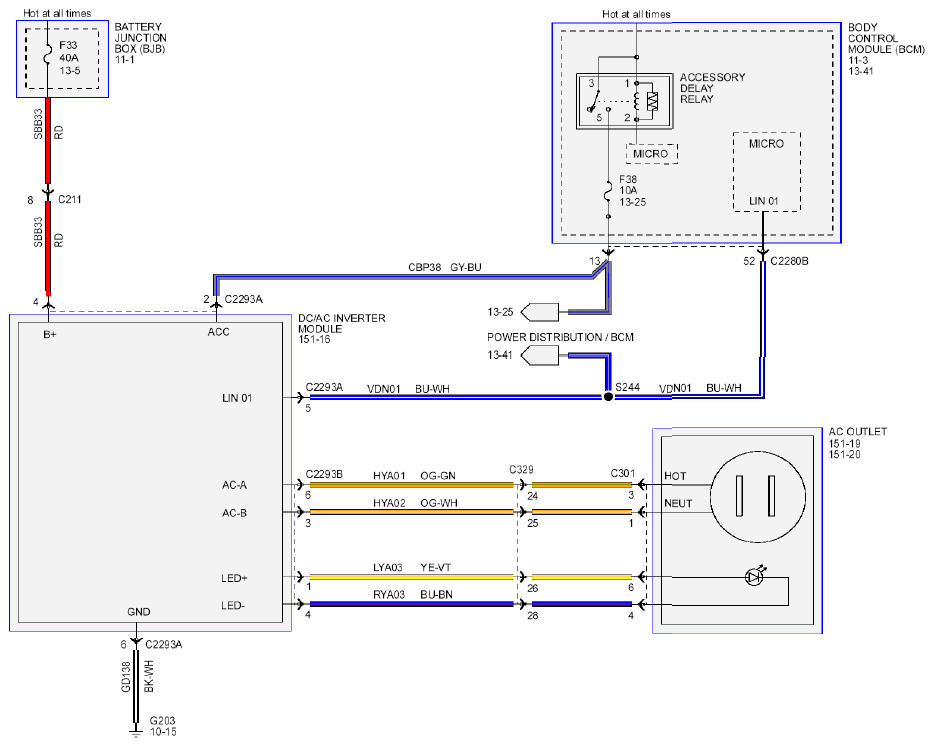

Fig 1: Horn Cigar Lighter - Circuit Diagram (With 110 Power Inverter)
Courtesy of FORD MOTOR CO.
