Horn/Cigar Lighter: Notes

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

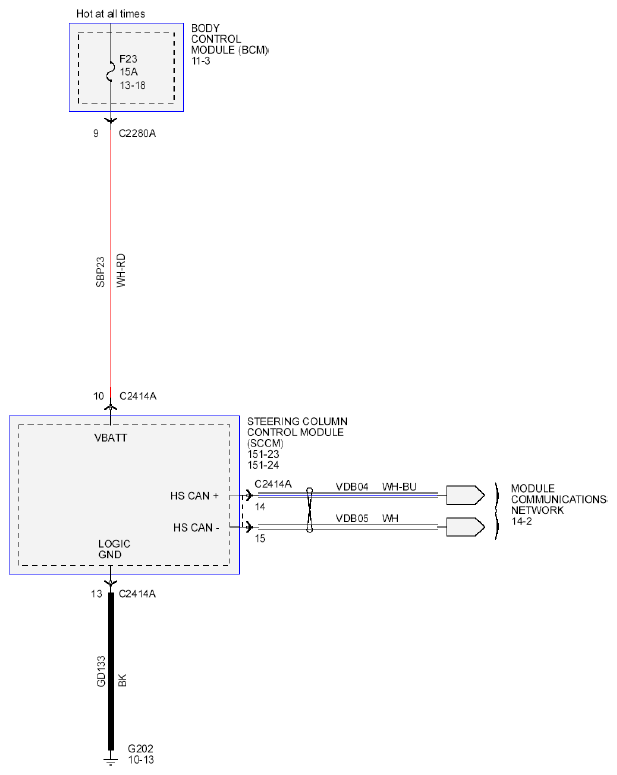

Fig 1: Horn Cigar Lighter - Circuit Diagram (1 Of 3)

Courtesy of FORD MOTOR CO.

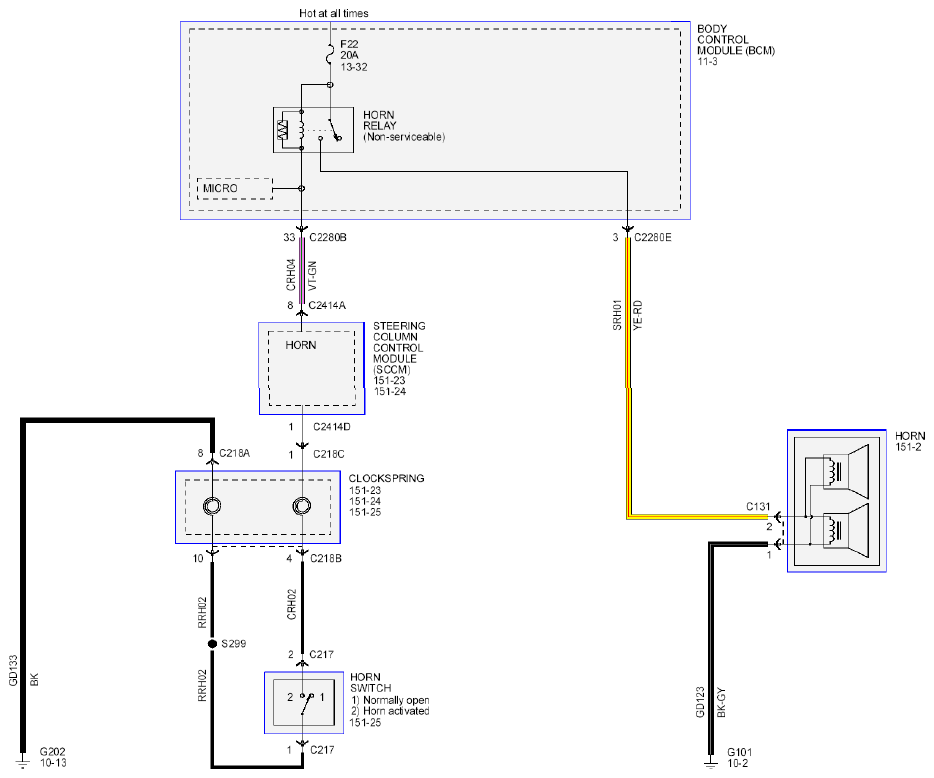

Fig 2: Horn Cigar Lighter - Circuit Diagram (2 Of 3)

Courtesy of FORD MOTOR CO.

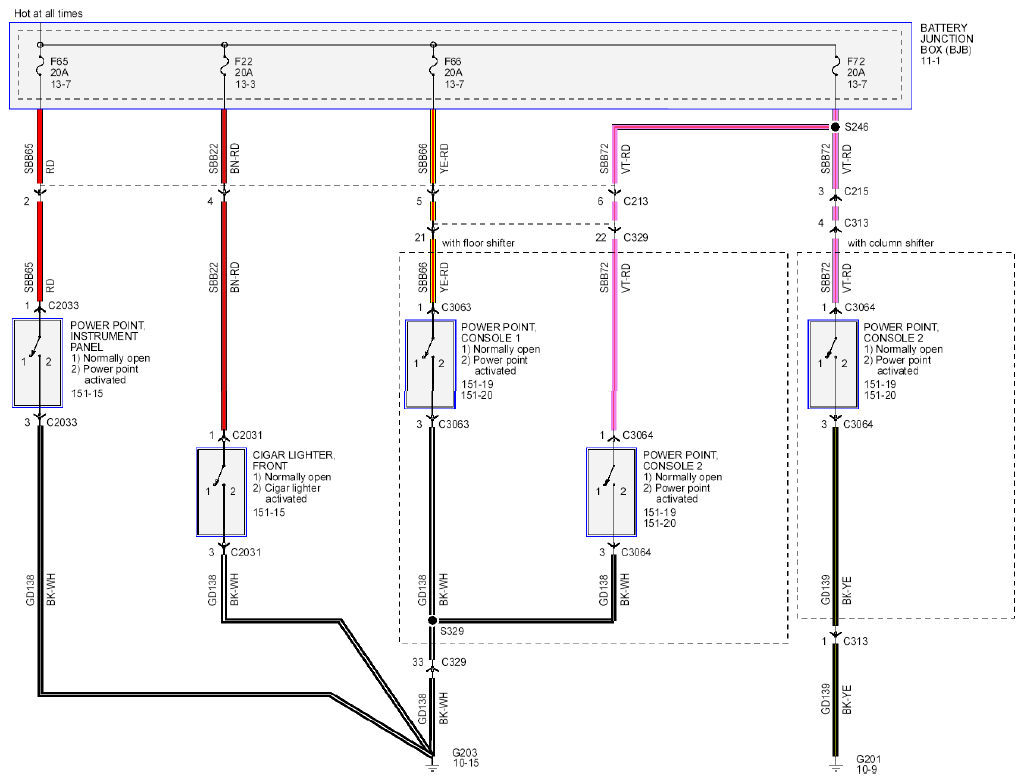

Fig 3: Horn Cigar Lighter - Circuit Diagram (3 Of 3)

Courtesy of FORD MOTOR CO.
