With Rear Window Defrost Grid

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

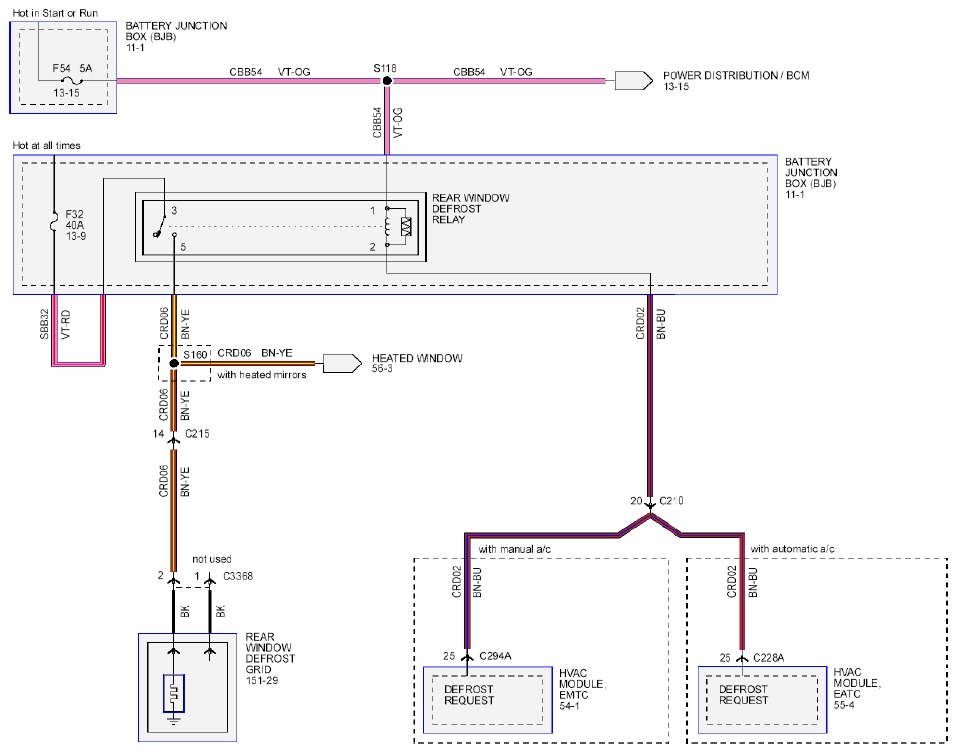

Fig 1: Heated Window - Circuit Diagram (With Rear Window Defrost Grid)
G08747144Courtesy of FORD MOTOR CO.
