Electronic Engine Controls - 3.5L

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

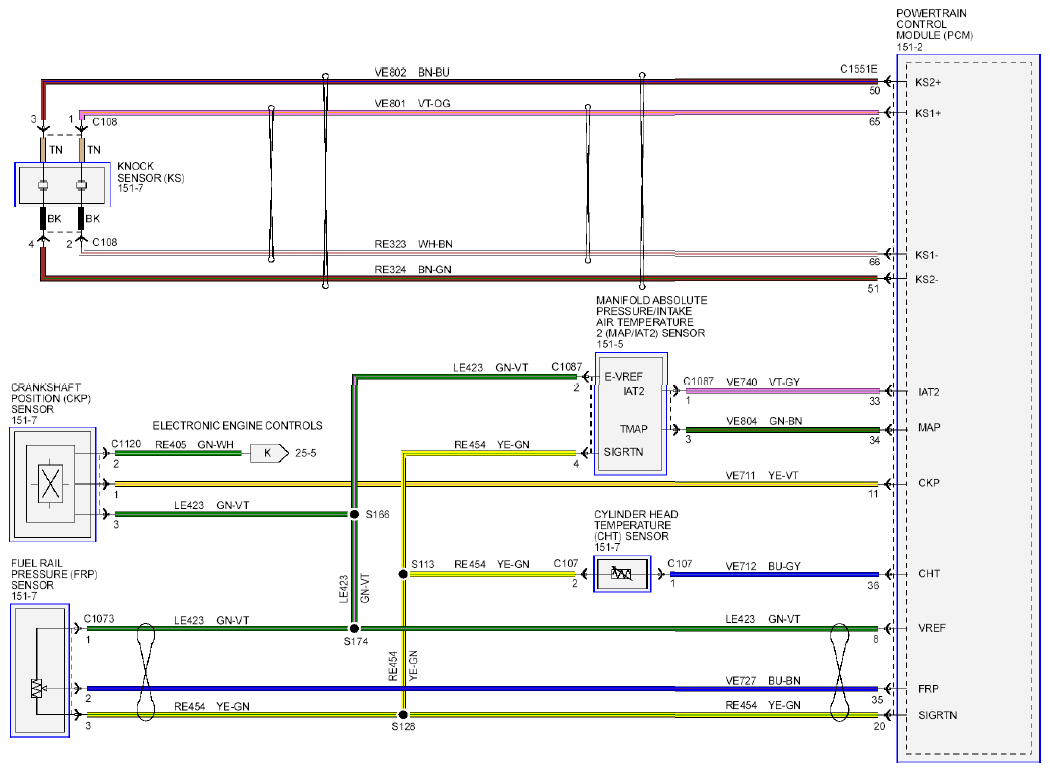

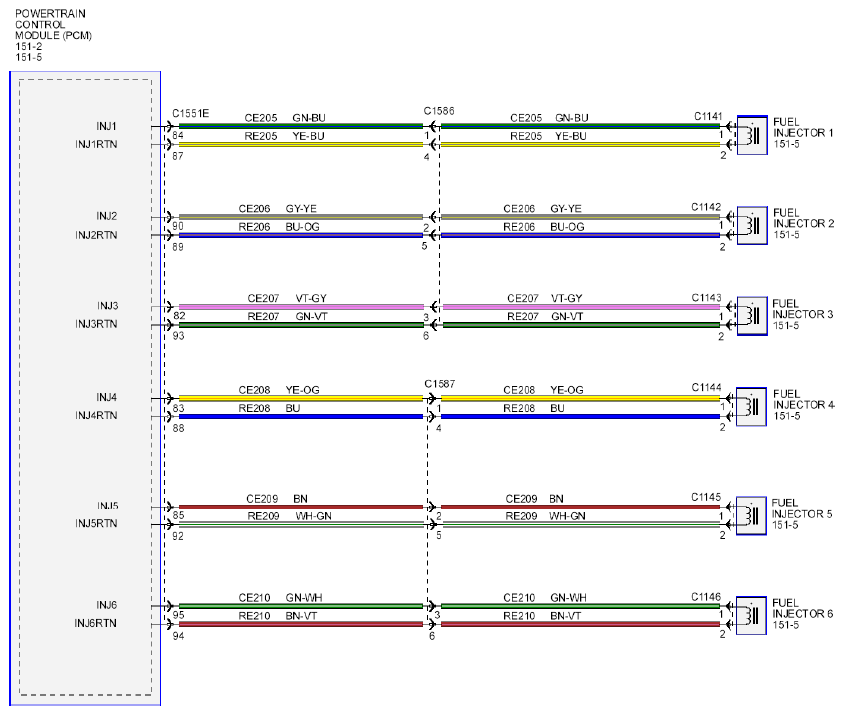

Fig 1: Electronic Engine Control Circuit Diagram - 3.5L (1 Of 13)

Courtesy of FORD MOTOR CO.

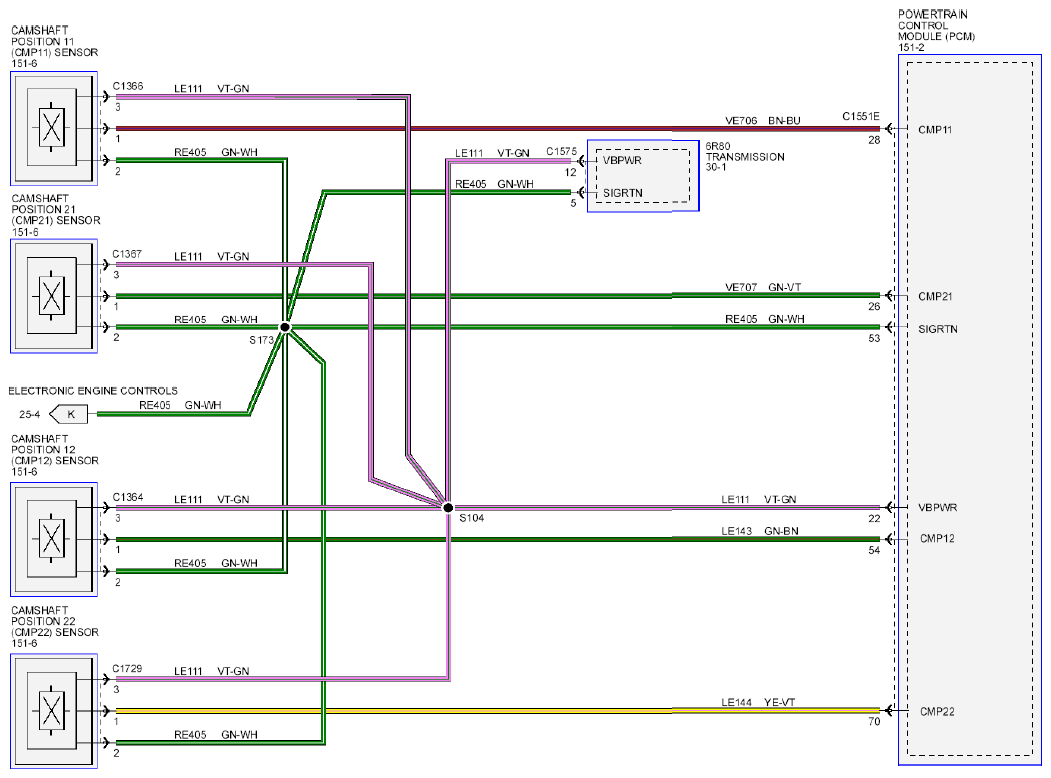

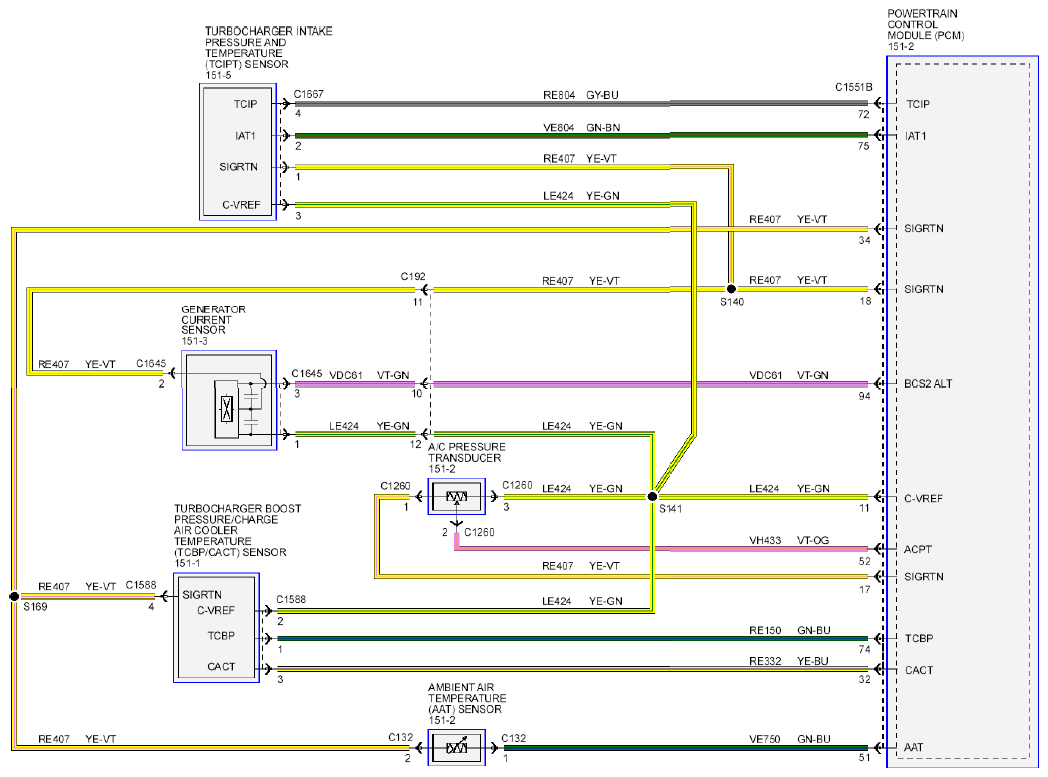

Fig 2: Electronic Engine Control Circuit Diagram - 3.5L (2 Of 13)

Courtesy of FORD MOTOR CO.

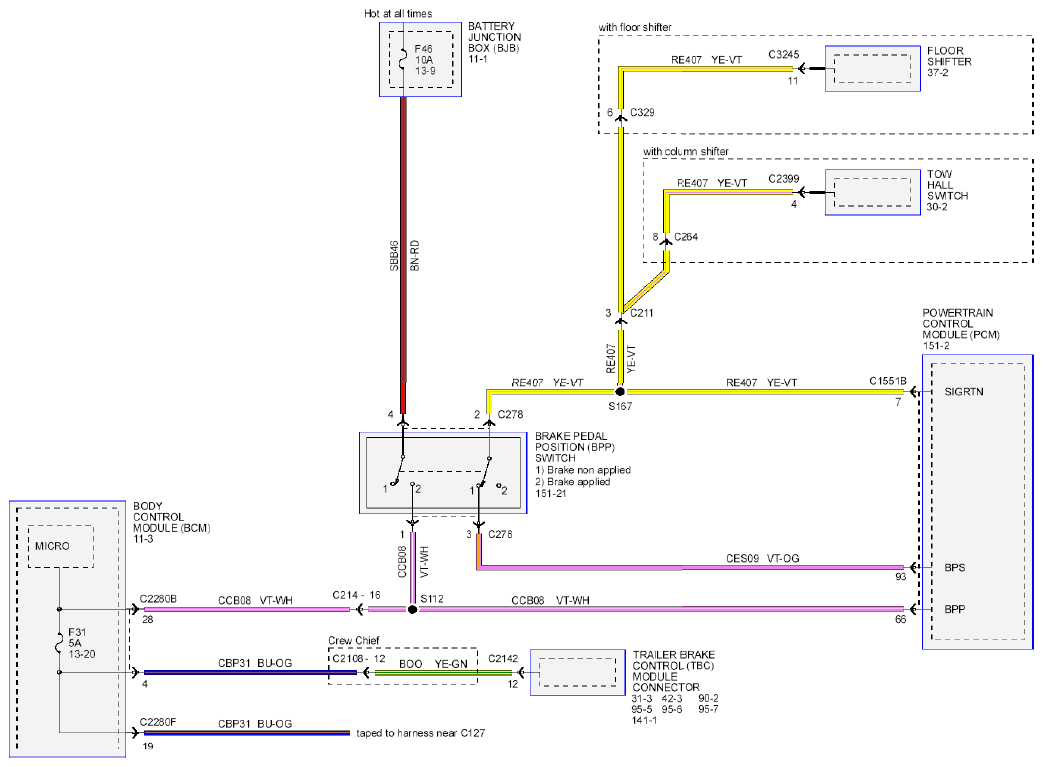

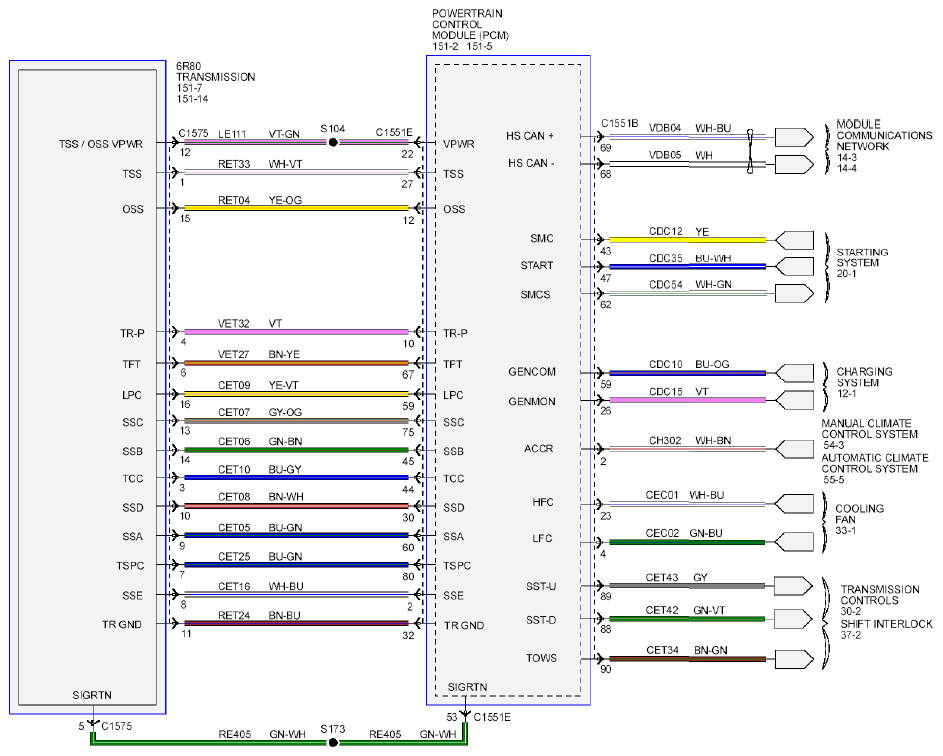

Fig 3: Electronic Engine Control Circuit Diagram - 3.5L (3 Of 13)

Courtesy of FORD MOTOR CO.

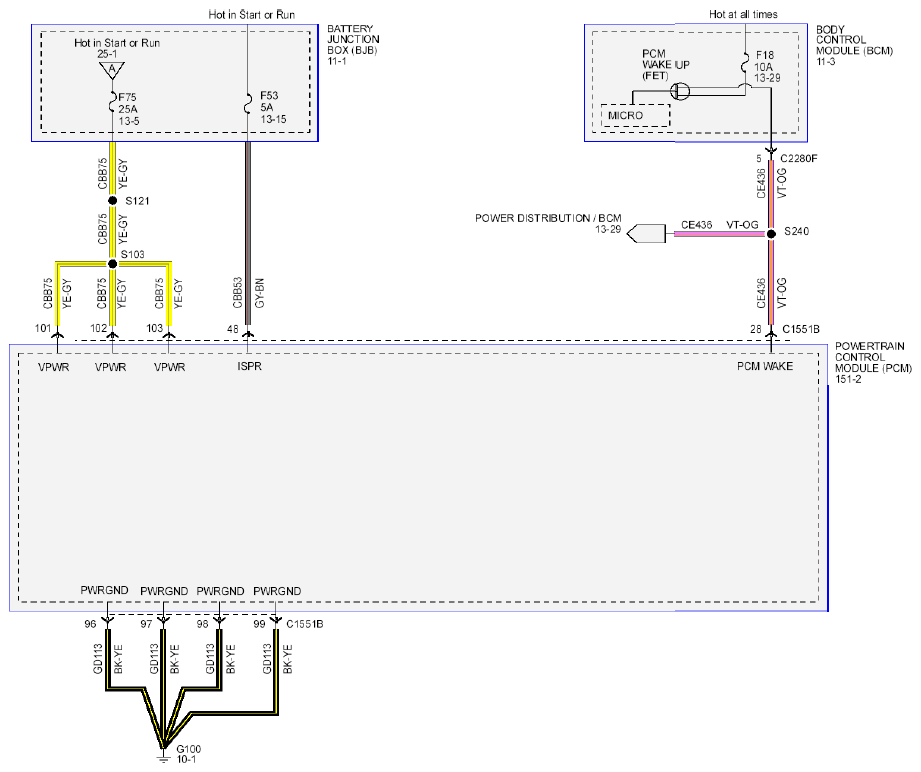

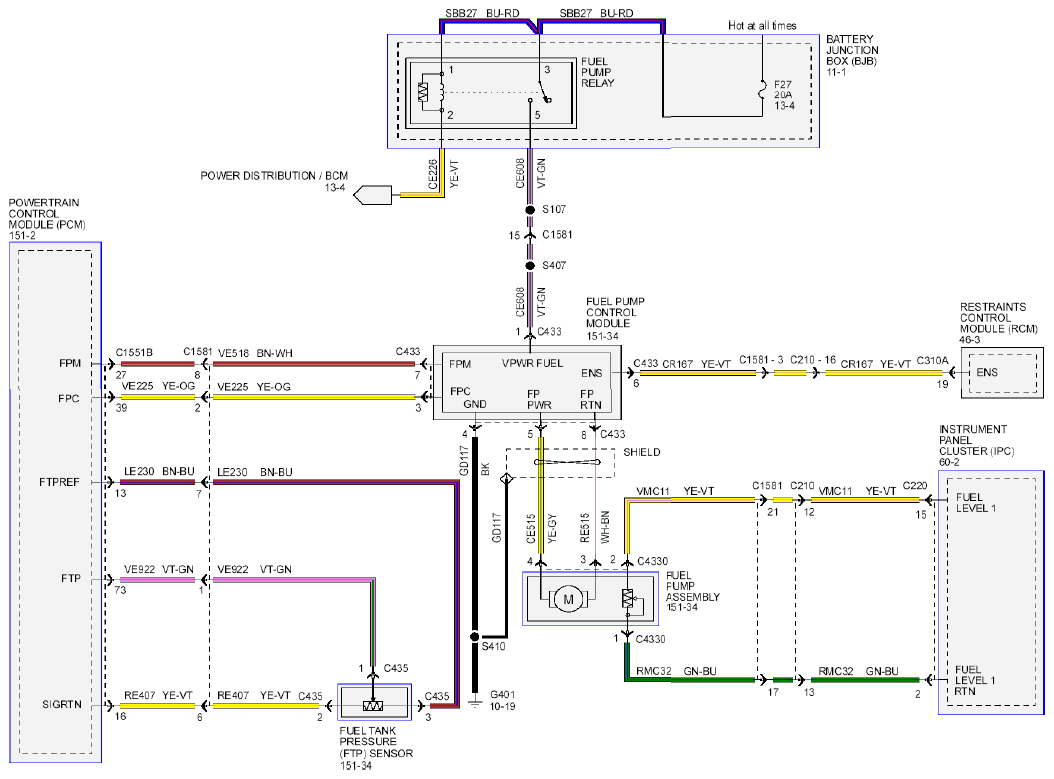

Fig 4: Electronic Engine Control Circuit Diagram - 3.5L (4 Of 13)

Courtesy of FORD MOTOR CO.

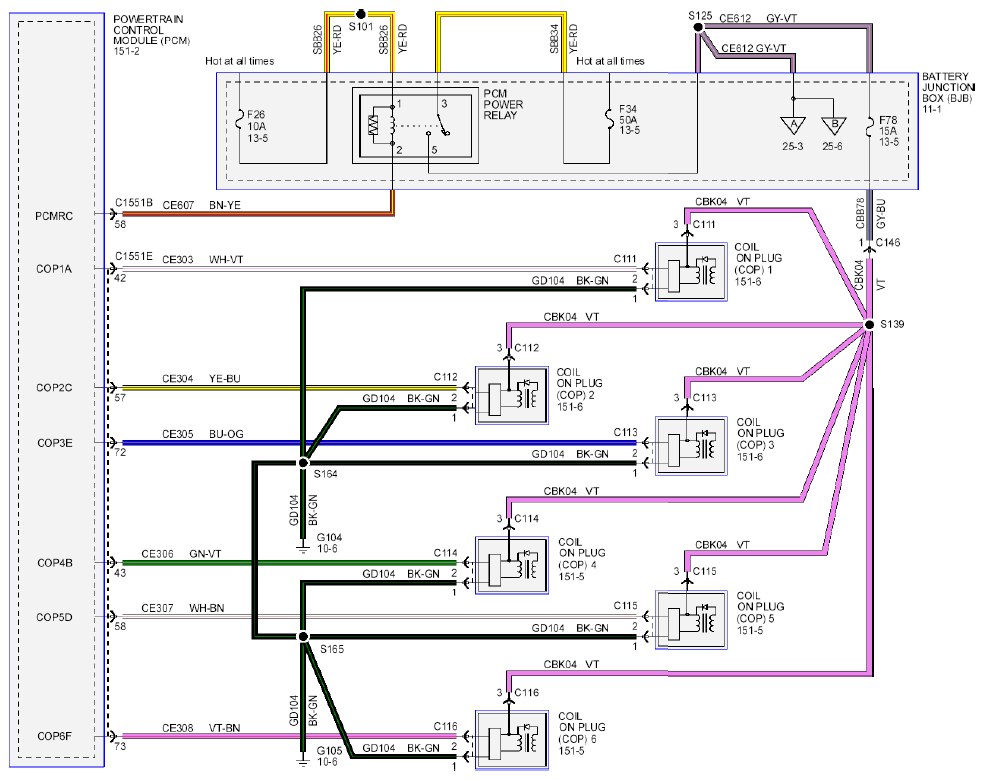

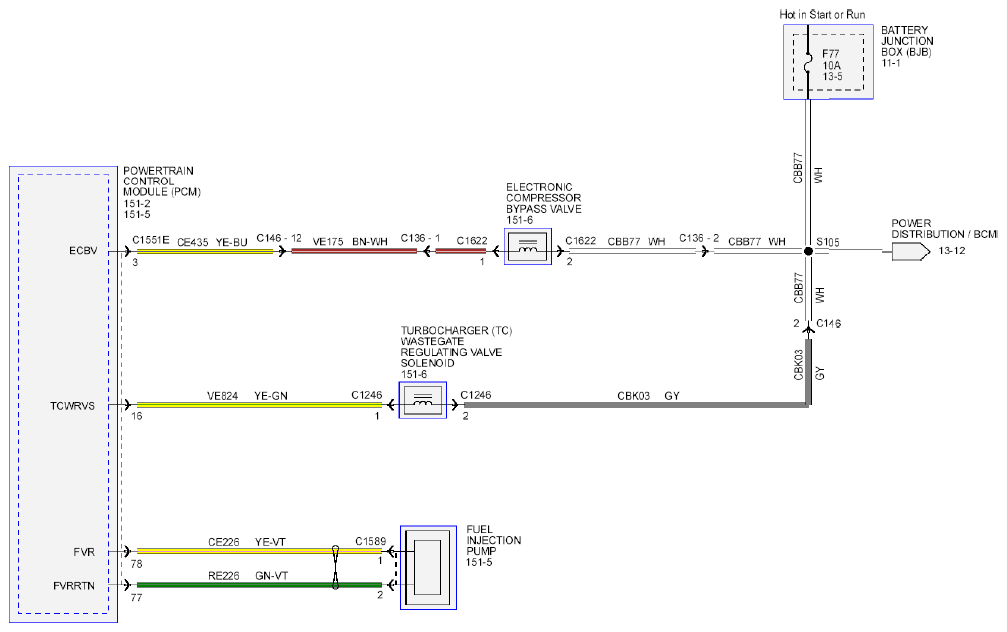

Fig 5: Electronic Engine Control Circuit Diagram - 3.5L (5 Of 13)

Courtesy of FORD MOTOR CO.

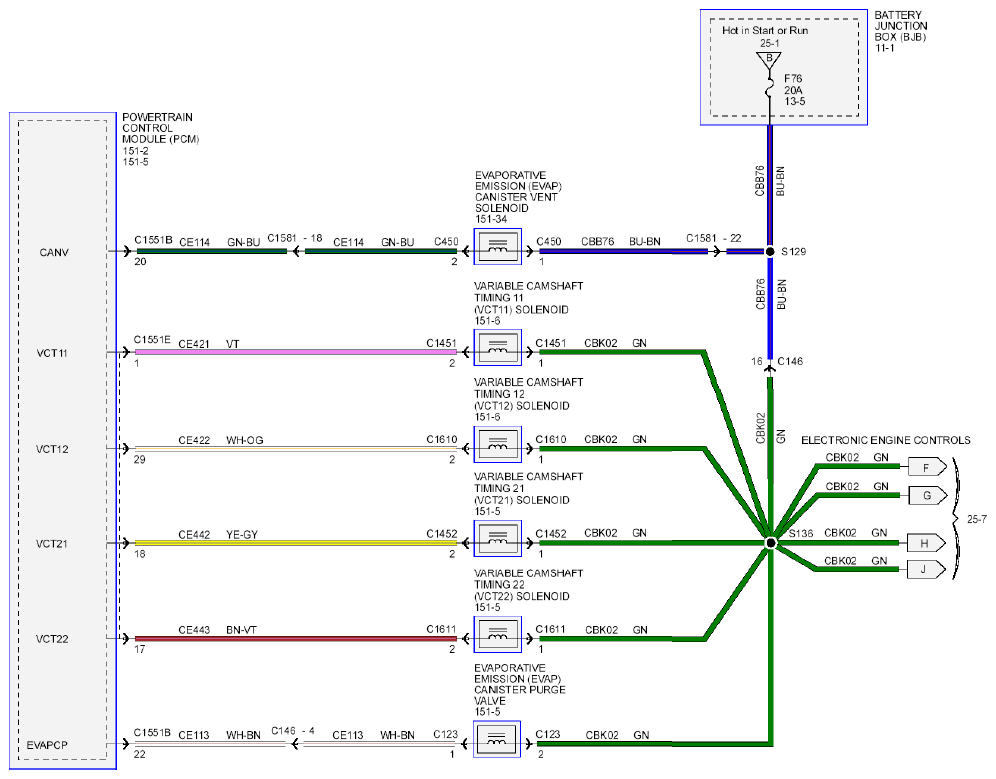

Fig 6: Electronic Engine Control Circuit Diagram - 3.5L (6 Of 13)

Courtesy of FORD MOTOR CO.

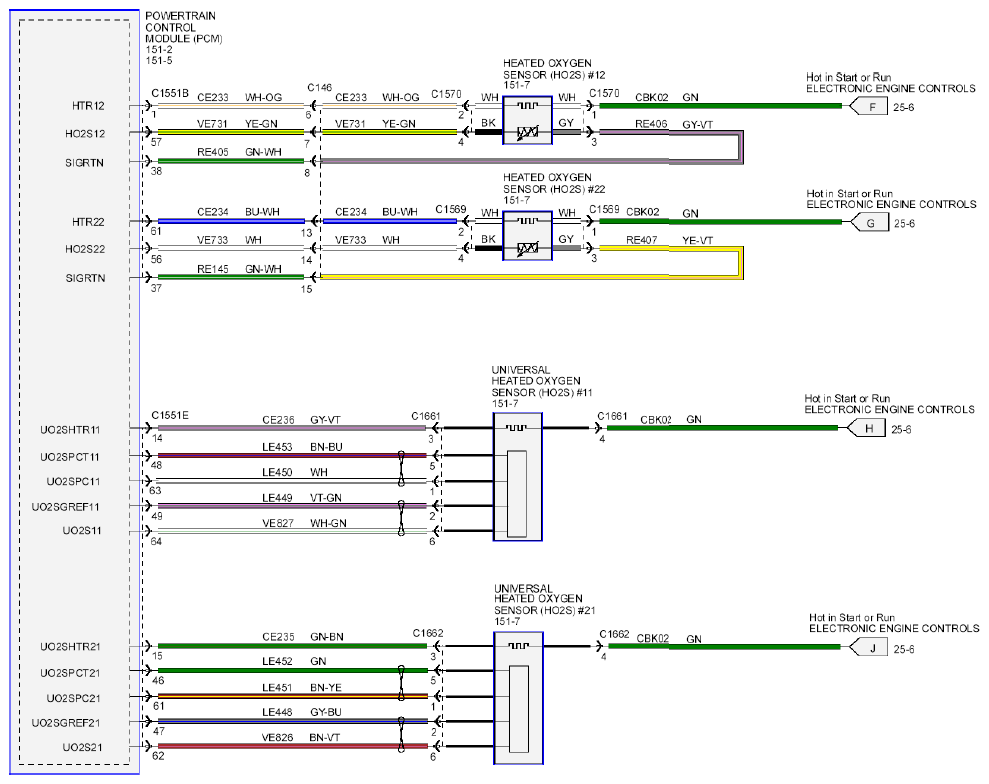

Fig 7: Electronic Engine Control Circuit Diagram - 3.5L (7 Of 13)

Courtesy of FORD MOTOR CO.

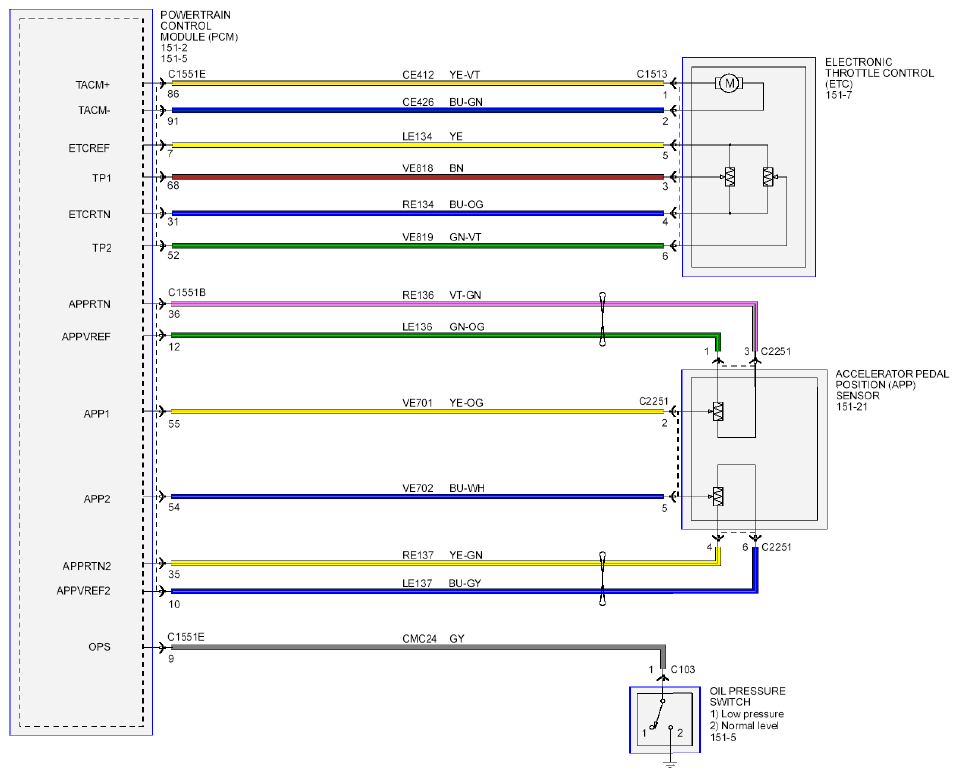

Fig 8: Electronic Engine Control Circuit Diagram - 3.5L (8 Of 13)

Courtesy of FORD MOTOR CO.

Fig 9: Electronic Engine Control Circuit Diagram - 3.5L (9 Of 13)

Courtesy of FORD MOTOR CO.

Fig 10: Electronic Engine Control Circuit Diagram - 3.5L (10 Of 13)

Courtesy of FORD MOTOR CO.

Fig 11: Electronic Engine Control Circuit Diagram - 3.5L (11 Of 13)

Courtesy of FORD MOTOR CO.

Fig 12: Electronic Engine Control Circuit Diagram - 3.5L (12 Of 13)

Courtesy of FORD MOTOR CO.

Fig 13: Electronic Engine Control Circuit Diagram - 3.5L (13 Of 13)

Courtesy of FORD MOTOR CO.
