Cruise Control: 3.5L

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

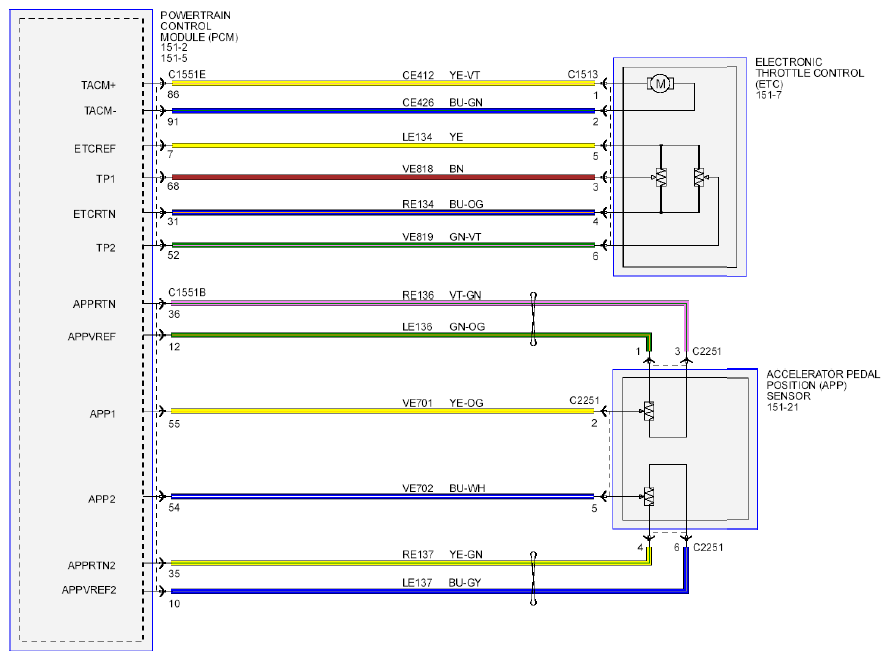

Fig 1: Cruise Control Circuit Diagram - 3.5L
G08747106Courtesy of FORD MOTOR CO.
