With Heated Seats

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

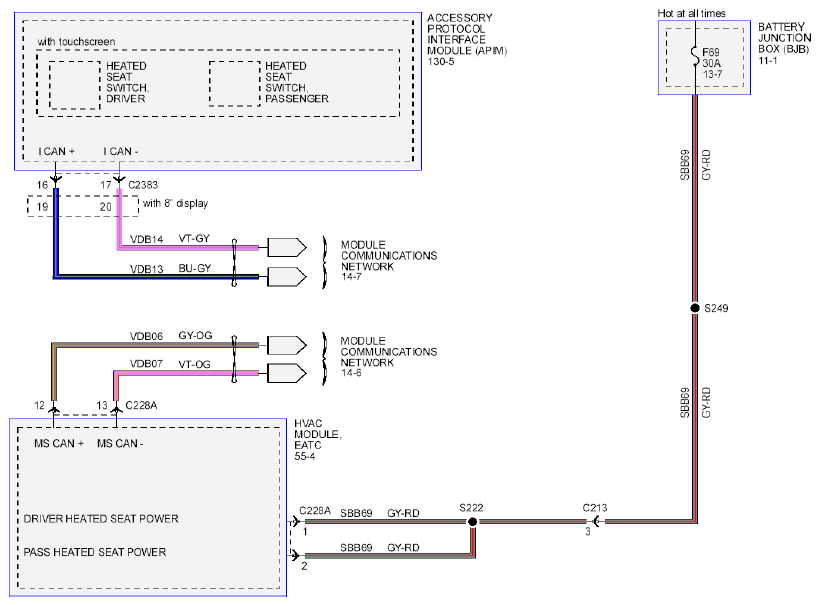

Fig 1: Climate Controlled Seats - Circuit Diagram - With Heated Seats (1 Of 2)

Courtesy of FORD MOTOR CO.

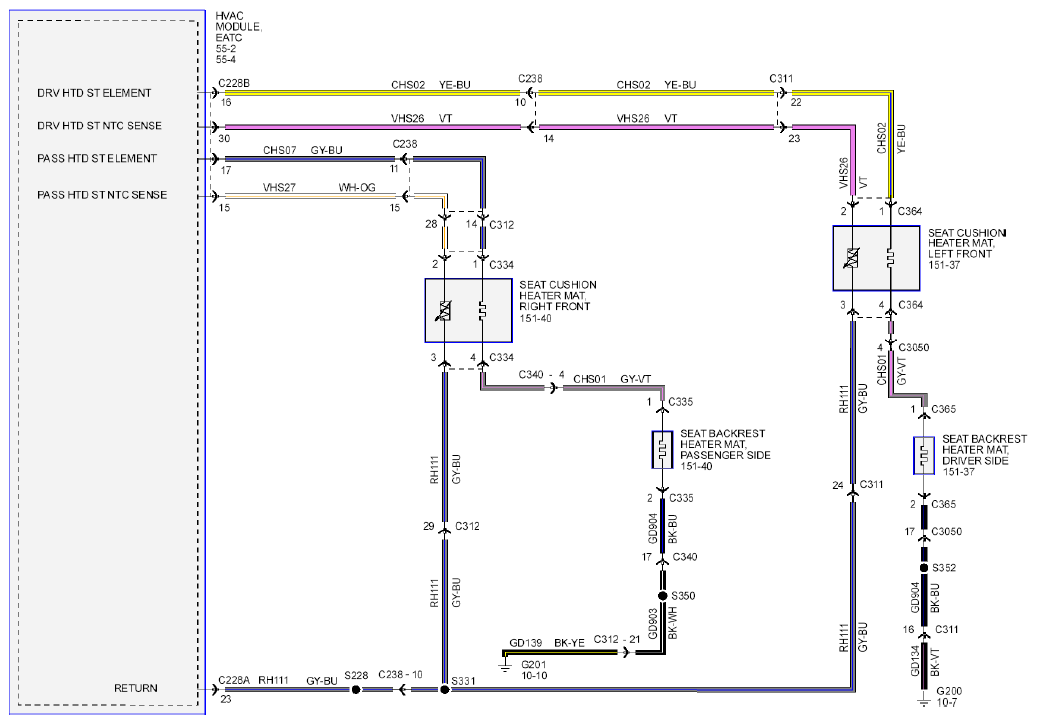

Fig 2: Climate Controlled Seats - Circuit Diagram - With Heated Seats (2 Of 2)

Courtesy of FORD MOTOR CO.
