Adjustable Steering Column
Adjustable Steering Column
WARNING:
This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

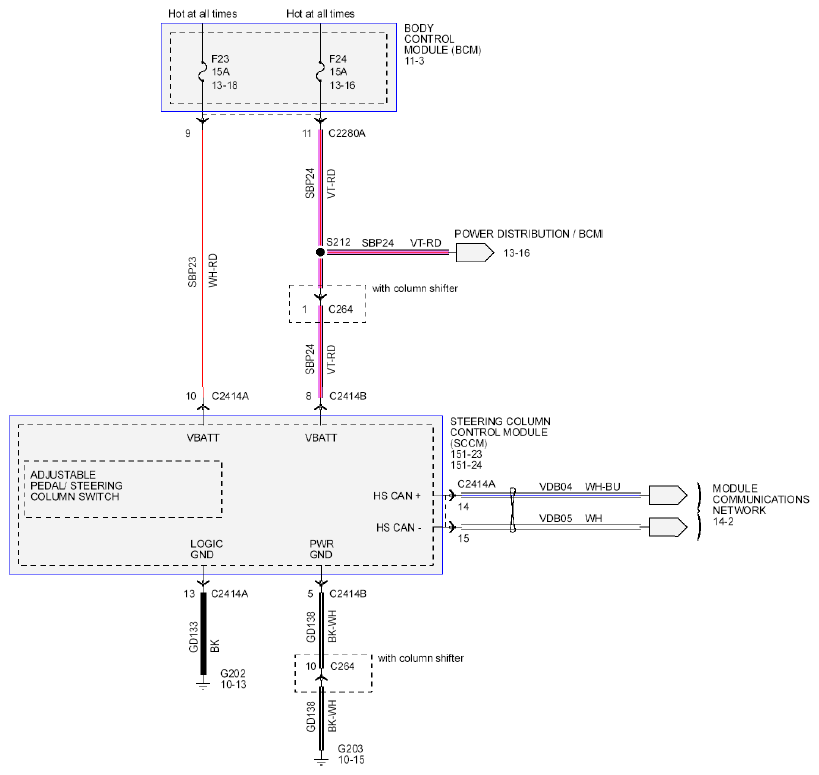

Fig 1: Adjustable Steering Column - Circuit Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

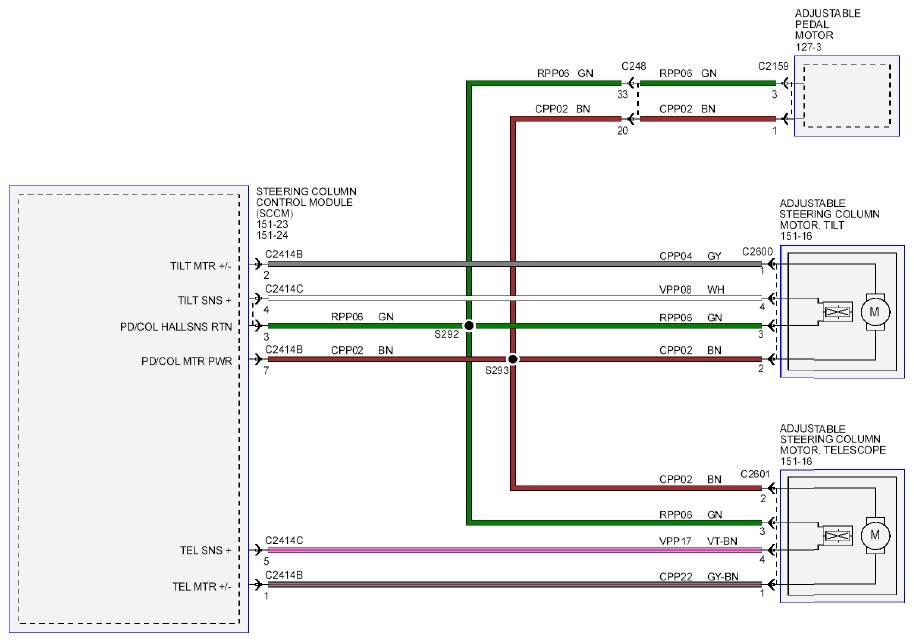

Fig 2: Adjustable Steering Column - Circuit Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
