Removal And Installation: Door: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

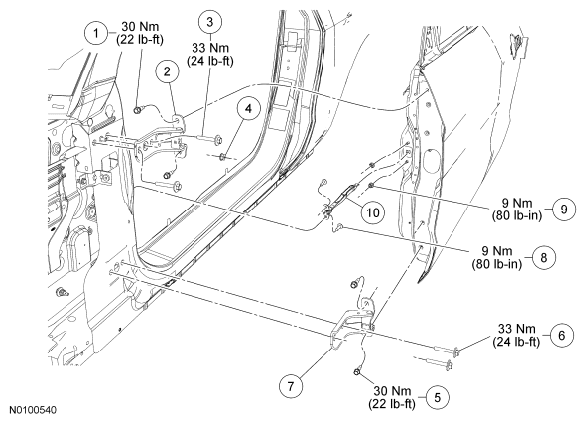

Front door shown in illustration, rear door similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W710941 | Front door hinge-to-door bolt |
| 2 | 6322800 | Front door upper hinge |
| 3 | W706289 | Front door hinge-to-body bolt |
| 4 | - | Front door hinge-to-body nut (part of 6322800) |
| 5 | W710941 | Front door hinge-to-door bolt |
| 6 | W706289 | Front door hinge-to-body bolt |
| 7 | 6322810 | Front door lower hinge |
| 8 | W706897 | Door check arm bolt |
| 9 | W520111 | Door check arm nut |
| 10 | 6323552 | Door check arm |
