Spoiler - Rear: Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Rear view camera shown in illustration, all others similar.

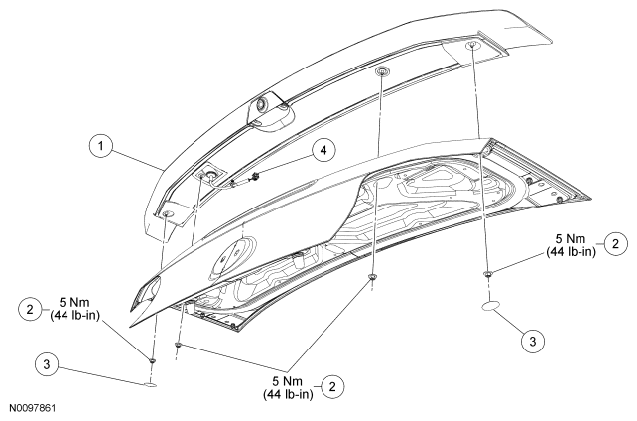

Fig 1: Rear Spoiler And Related Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	41602	Rear spoiler
2	W702147	Rear spoiler nuts (4 required)
3	W709073	Rear spoiler plugs (2 required)
4	-	Rear view camera electrical connector (part of 19G490)
