Rocker Panel Moulding: Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

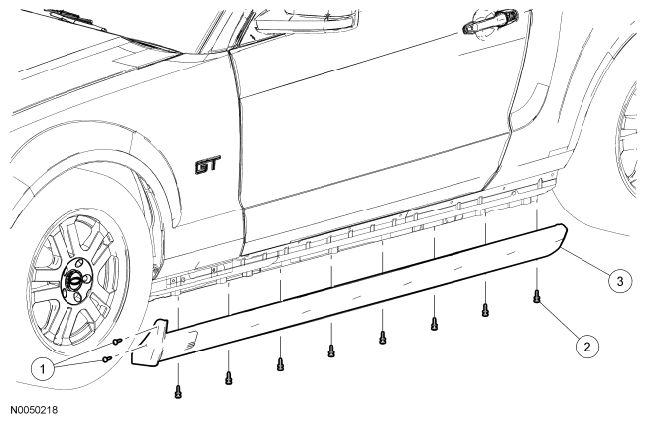

Fig 1: Identifying Rocker Panel Moulding With Retainers
G06384735Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W709176-S Front rocker panel-to-fender pin-type retainers (2 required each side)
2 W709889-S Rocker panel moulding pin-type retainer (8 required each side)
3 6310154 RH/6310155 LH Rocker panel moulding
