Applique - Rear, Roof: Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS

G08646584
Deluxe Windshield Removal Tool
164-R1511 or equivalent
MATERIAL SPECIFICATIONS

Item Specification
Dow Urethane Adhesive
Betaseal™ Express
-
Dow Urethane One Step Glass Primer
Betaprime™ 5500 / 5500A / 5500SA
-
Sika Urethane Adhesive
Sika Tack ASAP
-
Sika Urethane Metal and Glass Primer
Sika 206 G+P
-

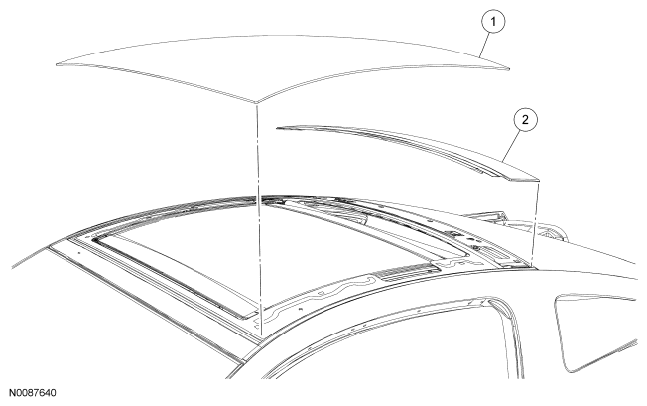

Fig 1: Identifying Roof Glass Panel And Rear Roof Applique
G06384750Courtesy of FORD MOTOR CO.
Item Part Number Description
1 50054 Roof glass panel
2 51942 Rear roof applique
