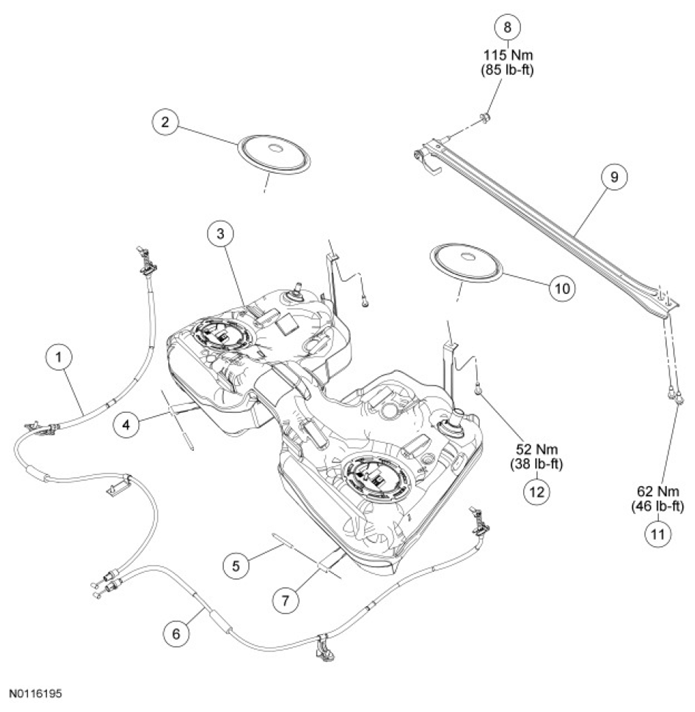

Fuel Tank Supports, Access Covers, Brake Cables, Lateral Stiffener Bar and Fasteners
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 2A635 | Rear parking brake cable (RH) |
| 2 | 9C335 | Fuel level sensor access cover |
| 3 | 9002 | Fuel tank |
| 4 | 9055 | Fuel tank strap (RH) |
| 5 | W710861 | Fuel tank strap pin (2 required) |
| 6 | 2A823 | Rear parking brake cable (LH) |
| 7 | 9055 | Fuel tank strap (LH) |
| 8 | W520214 | Lateral stiffener bar-to-body mount nut |
| 9 | 3424 | Lateral stiffener bar |
| 10 | 9C335 | Fuel Pump (FP) module access cover |
| 11 | W711331 | Lateral stiffener bar-to-body bolt (2 required) |
| 12 | W710947 | Fuel tank strap bolt (2 required) |
