Vehicles equipped with a 3.7L engine: Installation

All vehicles

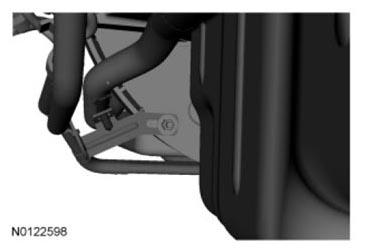

1. Install the front transmission cooler tube assembly to the transmission cooler.
2. Install the front transmission cooler tube assembly in the vehicle. Refer to TRANSMISSION FLUID COOLER .

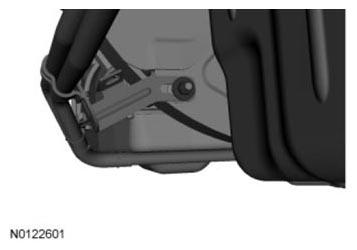

3. Install the rear transmission fluid cooler tube assembly in the vehicle.

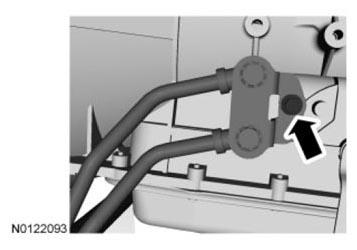

4. Install a new rear transmission fluid cooler tube bolt.
   • Tighten to 25 Nm (18 lb-ft).

   Vehicles equipped with a 3.7L engine

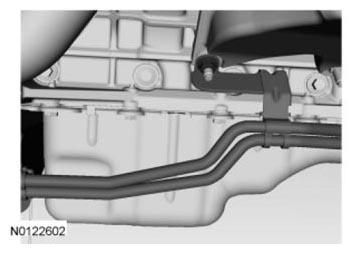

5. Install the rear transmission fluid cooler tube bracket-to-engine mount nut.
   • Tighten to 48 Nm (35 lb-ft).

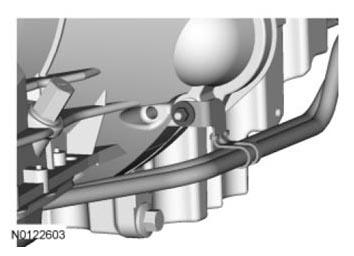

6. Install the rear transmission fluid cooler tube bracket-to-transmission nut.
   • Tighten to 13 Nm (115 lb-in).

   Vehicles equipped with a 5.0L (4V) engine

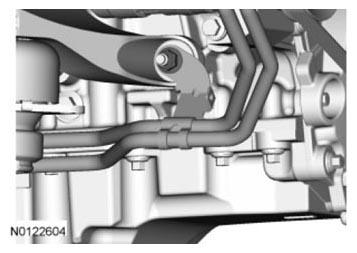

7. Install the rear transmission fluid cooler tube bracket-to-engine mount nut.
   • Tighten to 48 Nm (35 lb-ft).
8. Install the rear transmission fluid cooler tube bracket-to-transmission nut.
   • Tighten to 13 Nm (115 lb-in).
9. Install the starter wiring harness pin-type retainer to the transmission cooler tube bracket.

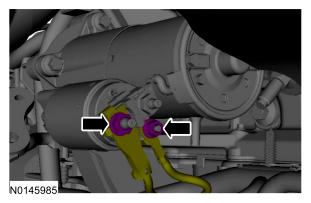

10. Install the wires and the 2 starter solenoid terminal nuts.
    • Tighten the starter solenoid battery terminal nut to 12 Nm (106 lb-in).
    • Tighten the starter solenoid terminal nut to 5 Nm (44 lb-in).

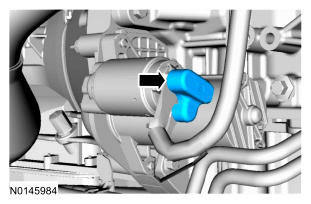

11. Install the starter solenoid terminal cover.

    All vehicles

12. Connect the transmission cooler tube assemblies.
13. Install both transmission fluid cooler tube quick connect secondary latches.
14. Install the lower radiator sight shield and 13 screws.
15. Position the underbody shield and install the 3 bolts.
    • Tighten to 10 Nm (89 lb-in).
16. Fill the transmission with fluid and verify correct operation. Refer to TRANSMISSION FLUID LEVEL CHECK .
