5.8L (4V) Engine: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

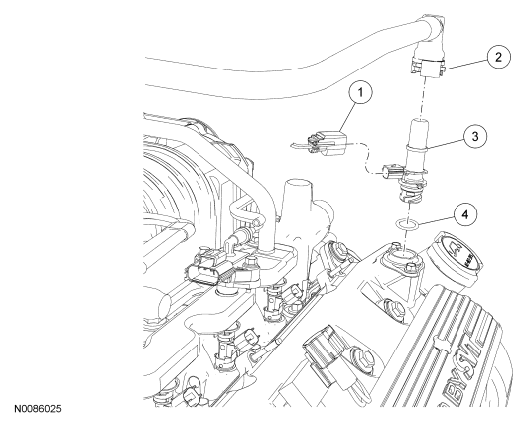

Fig 1: Identifying Crankcase Ventilation Tube To PCV Valve Quick Connect Coupling, PCV Valve, Electrical Connector And O-Ring Seal (5.8L Engine)
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | PCV valve electrical connector |
| 2 | - | Crankcase ventilation tube-to-PCV valve quick connect coupling (part of 6K817) |
| 3 | 6A666 | PCV valve |
| 4 | - | PCV valve O-ring seal (part of 6A666) |
