Cooling Fan Motor and Shroud - 3.7L and 5.0L: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

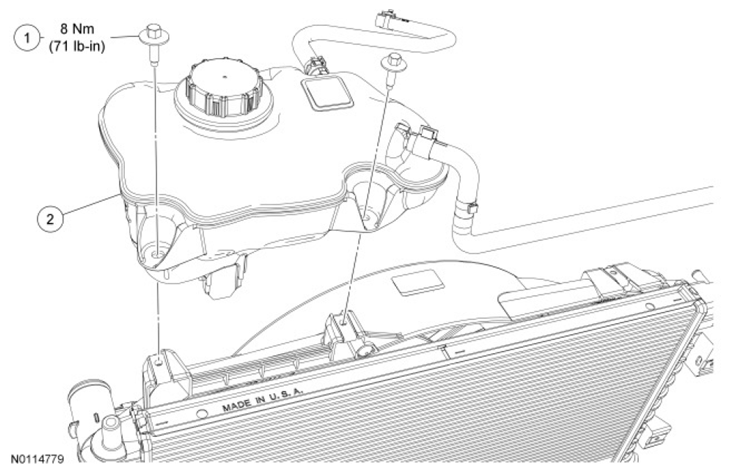

Fig 1: Exploded View Of Cooling Fan Motor And Shroud With Torque Specifications (3.7L And 5.0L) (1 Of 2)
| Item | Part Number | Description |
|---|---|---|
| 1 | W704652 | Degas bottle bolt (2 required) |
| 2 | 8A080 | Degas bottle |

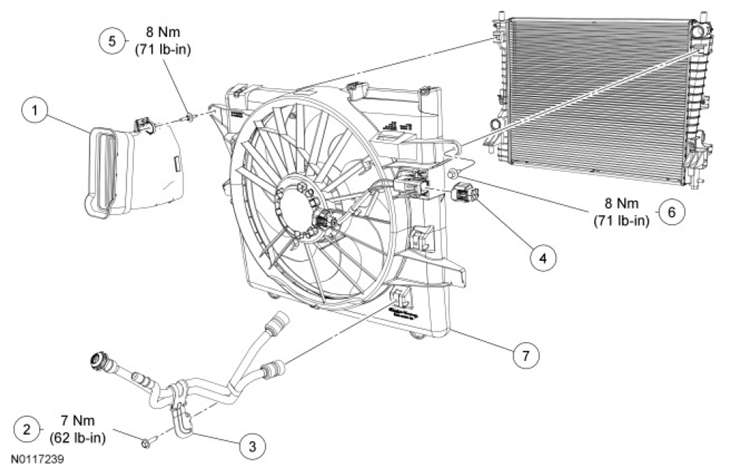

Fig 2: Exploded View Of Cooling Fan Motor And Shroud With Torque Specifications (3.7L And 5.0L) (2 Of 2)
| Item | Part Number | Description |
|---|---|---|
| 1 | 9A624 | Air Cleaner (ACL) inlet pipe |
| 2 | W707491 | Transmission cooler tubes bracket bolt |
| 3 | - | Transmission cooler tubes bracket (part of 7A095) |
| 4 | - | Cooling fan motor electrical connector (part of 14290) |
| 5 | W715011 | Cooling fan motor and shroud stud bolt |
| 6 | W704652 | Cooling fan motor and shroud bolt |
| 7 | 8C607 | Cooling fan motor and shroud |
