Coolant Pump and Pulley: Removal
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. Refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
- Drain the SC cooling system. Refer to SUPERCHARGER COOLING .

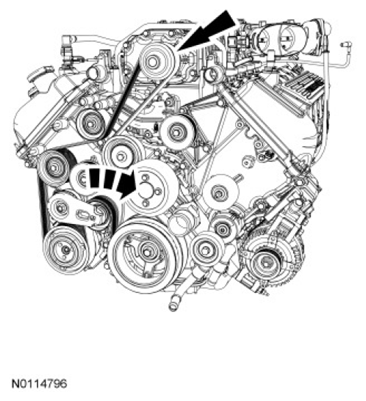

- Loosen the 4 coolant pump pulley bolts.
- To install, tighten to 25 Nm (18 lb-ft).
- Remove the accessory drive belt. Refer to ACCESSORY DRIVE .
- Rotate the SC belt tensioner clockwise and remove the SC belt off the SC.
- Remove the 4 coolant pump pulley bolts and the coolant pump pulley.
- Release the clamp and disconnect the lower radiator hose from the coolant pump.
- Remove the 4 bolts and the coolant pump.
- Discard the coolant pump O-ring seal.
- To install, tighten to 25 Nm (18 lb-ft).
