Coolant Pump and Pulley: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

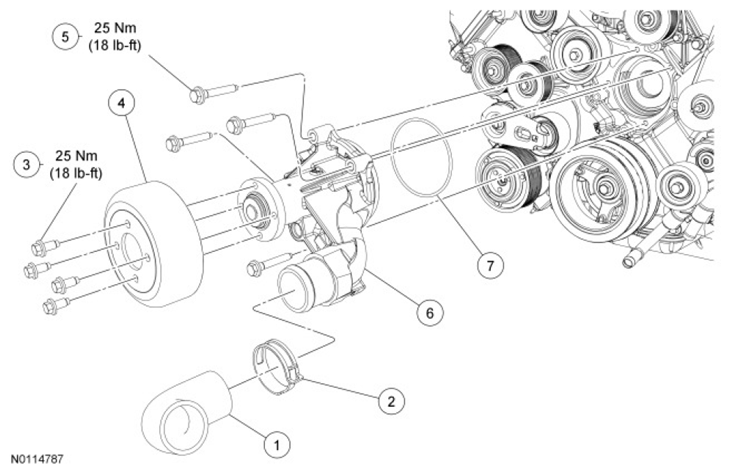

| Item | Part Number | Description |
|---|---|---|
| 1 | 8286 | Lower radiator hose assembly |
| 2 | - | Lower radiator hose assembly clamp (part of 8286) |
| 3 | N806282 | Coolant pump pulley bolt (4 required) |
| 4 | 8509 | Coolant pump pulley |
| 5 | N806177 | Coolant pump bolt (4 required) |
| 6 | 8501 | Coolant pump |
| 7 | 391108 | Coolant pump O-ring seal |
