Removal and Installation

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

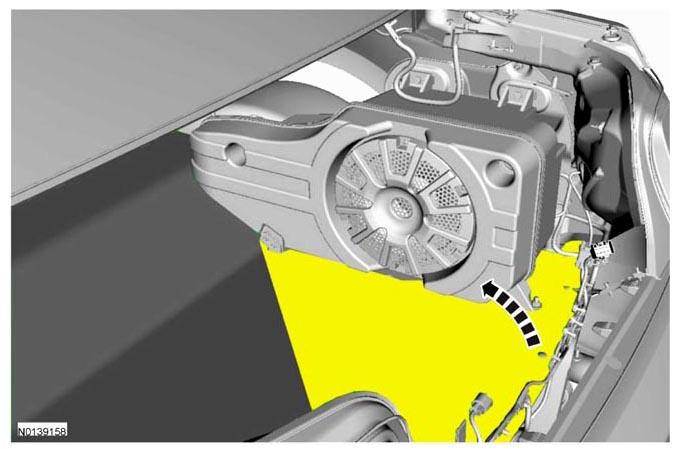

  1. Position the trunk floor mat aside.
    G08646134

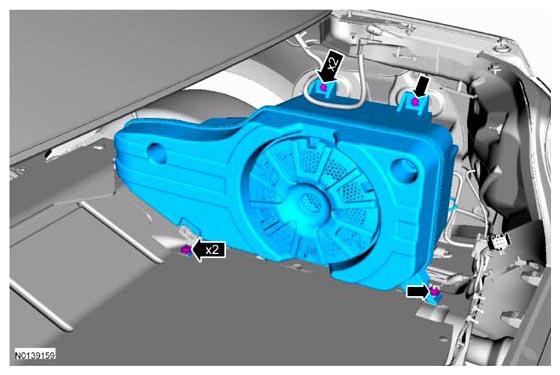

  2. Remove the 2 speaker enclosure bolts, the 2 speaker enclosure nuts and remove the speaker enclosure.
    • To install, tighten to 11 Nm (97 lb-in).
      G08646135

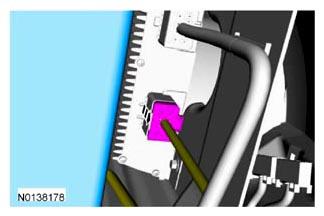

  3. Disconnect the speaker enclosure electrical connector.
    G08646136
  4. To install, reverse the removal procedure.
