Removal and Installation

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

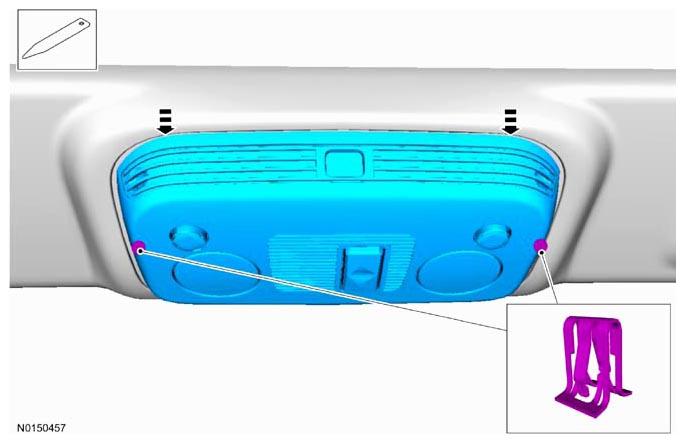

  1. Lower the overhead console.
    G08646140

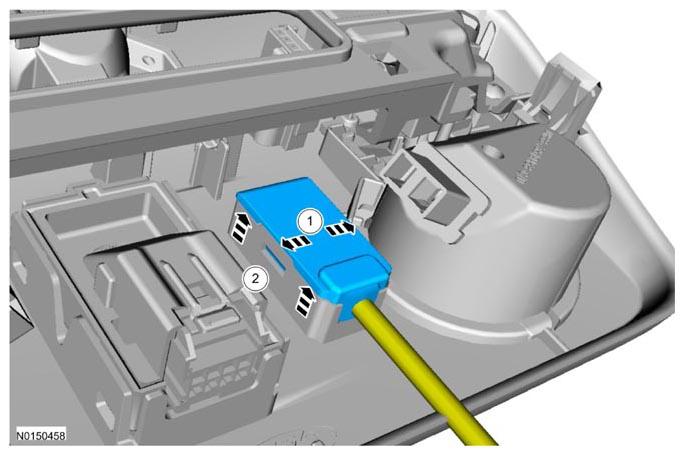

  2. Remove the microphone from the overhead console.
    1. Release tabs.
    2. Remove the microphone, disconnect the electrical connector.
      G08646141
  3. To install, reverse the removal procedure.
