Removal and Installation

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the LH lower A-piller trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the 3 nuts and the audio amplifier.
    • Disconnect the 2 electrical connectors.
    • To install, tighten to 3 Nm (27 lb-in).

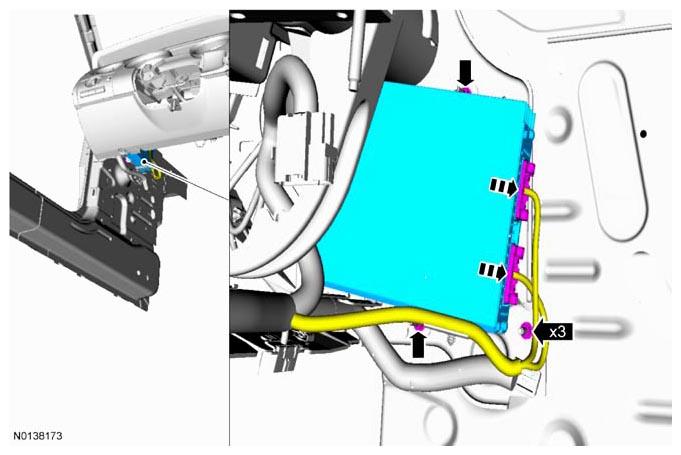

      G08646121
  3. To install, reverse the removal procedure.
