Starter Motor - 5.8L (4V): Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

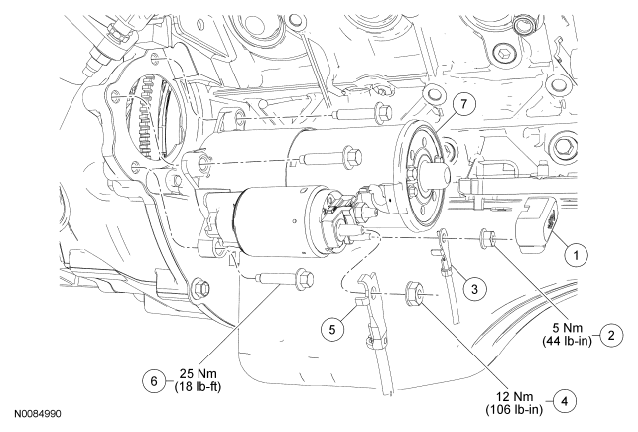

| Item | Part Number | Description |
|---|---|---|
| 1 | 11N087 | Starter solenoid terminal cover |
| 2 | W705790 | Starter solenoid S-terminal nut |
| 3 | Part of 14300 | Starter solenoid S-terminal eyelet |
| 4 | W709450 | Starter solenoid B+ terminal nut |
| 5 | Part of 14300 | Starter solenoid B+ terminal eyelet |
| 6 | W500310 | Starter motor mounting bolt (3 required) |
| 7 | 11002 | Starter motor |
