Selector Lever Cable and Bracket: Removal

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
  2. Discard the specified component. Follow local disposal regulations.
    G07990552

    Vehicles equipped with a 5.0L (4V) engine

  3. Screwdriver.

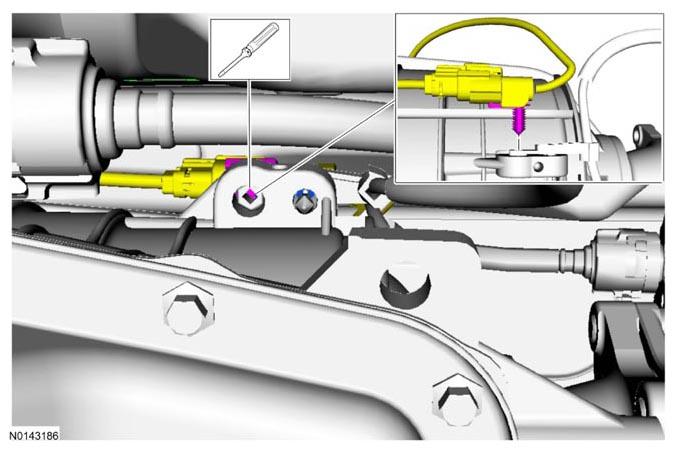

    G07990553

    All vehicles

  4. Screwdriver.

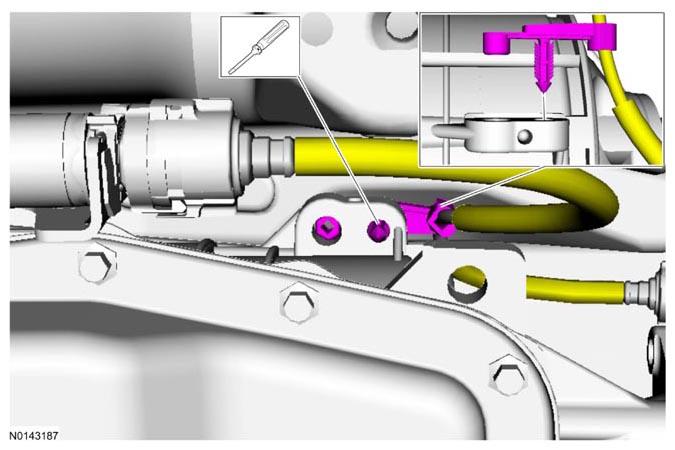

    G07990554

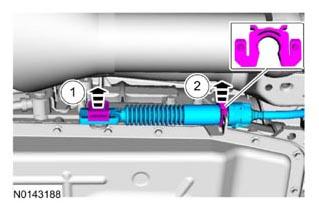

  5. G07990557
  6. G07488518
