Removal And Installation: Headliner: Coupe
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

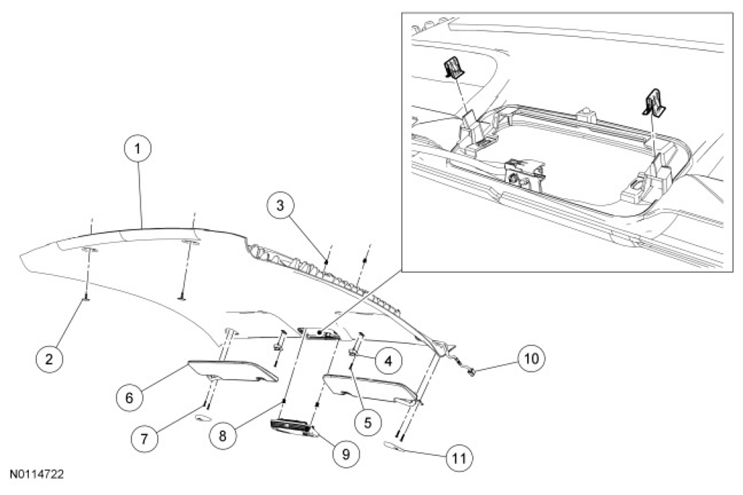

| Item | Part Number | Description |
|---|---|---|
| 1 | 6351916 | Headliner |
| 2 | W714340 | Headliner pushpin retainer (2 required) |
| 3 | - | Headliner retaining clip (2 required) (part of 6351916) |
| 4 | 04132 | Sun visor arm clip (2 required) |
| 5 | - | Sun visor arm clip screw (2 required) (part of 04132) |
| 6 | 6304104 LH/6304105 RH | Sun visor |
| 7 | - | Sun visor screw (4 required) (part of 6304104 LH/6304105 RH) |
| 8 | - | Overhead console retaining clip (2 required) (part of 519A58) |
| 9 | 519A58 | Overhead console wire harness |
| 10 | 14334 | Overhead console wire harness |
| 11 | 046B96 RH/046B97 LH | Sun visor bracket cover |
