A-Pillar Trim Panel: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

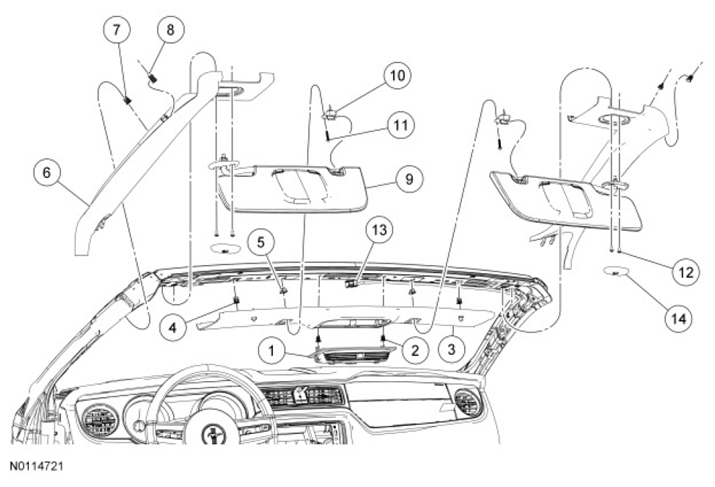

Convertible shown in illustration, coupe similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6351A58 | Overhead console |
| 2 | W704021 | Overhead console retainer (2 required) |
| 3 | 760387 | Header trim panel |
| 4 | W704021 | Header trim panel retainer (2 required) |
| 5 | 1704100 | Sun visor clip insert (2 required) |
| 6 | 7603599 LH/7603598 RH | A-pillar trim panel |
| 7 | W704021 | A-pillar trim panel retaining clip |
| 8 | 7603598 | A-pillar trim panel pushpin |
| 9 | 6304105 LH/6304104 RH | Sun visor |
| 10 | 6304132 | Sun visor clip |
| 11 | - | Sun visor clip screw (2 required) (part of 6304132) |
| 12 | - | Sun visor screw (4 required) (part of 6304105 LH/6304104 RH) |
| 13 | 14334 | Overhead console wiring harness |
| 14 | 76046B96 | Sun visor bracket cover (2 required) |
