Door Lock Cylinder: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

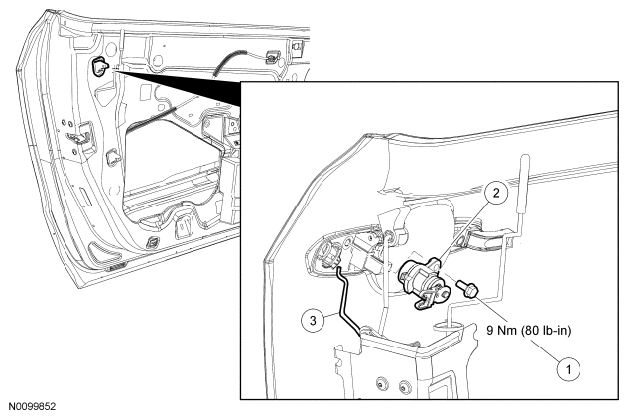

Inner door sheet metal shown in illustration removed for clarity.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W709891 |
Door lock cylinder bolt |
| 2 |
5421991 |
Door lock cylinder |
| 3 |
6322135 |
Door lock cylinder actuating rod |
