Removal and Installation

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the interior door handle. For additional information, refer to INTERIOR DOOR HANDLE .
  2. Release the tabs, and remove the door lock control switch from the interior door handle.

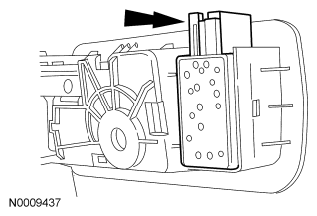

    Fig 1: Locating Door Lock Control Switch Tabs
    G06404062Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
