PINPOINT TEST J: DTCs B0090:11 OR B0090:93

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use the correct probe adapter(s) from the Flex Probe Kit when taking measurements. Failure to use the correct probe adapter(s) may damage the connector.
Most faults are due to connector and/or wiring concerns. Carry out a thorough inspection and verification before proceeding with the pinpoint test.
NOTE: Supplemental Restraint System (SRS) components should only be disconnected or reconnected when instructed to do so within a pinpoint test step. Failure to follow this instruction may result in incorrect diagnosis of the SRS.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
NOTE: Always make sure the correct SRS component is being installed. Parts released for other vehicles may not be compatible even if they appear physically similar. Check the part number listed in the Master Parts Catalog to make sure the correct component is being installed. If an incorrect SRS component is installed, DTCs may set.
NOTE: Do not probe any impact sensor. The impact sensor cannot be tested using a multi-meter.
  1. J1 RETRIEVE THE RCM DTCs
    • Enter the following diagnostic mode on the scan tool: Self Test - RCM.
    • Was DTC B0090:11 or B0090:93 retrieved on-demand during self-test?
    • Yes  : This fault cannot be cleared until it is corrected and the DTC is no longer retrieved on-demand during self-test.

      For DTC B0090:11, GO to J2.

      For DTC B0090:93, GO to  J5.

    • No  : The fault is intermittent when present as a Continuous Memory Diagnostic Trouble Code (CMDTC) only. GO to  J10.
  2. J2 CHECK THE LEFT FRONTAL RESTRAINTS SENSOR DTC FOR FAULT STATUS CHANGE (SHORT TO GROUND INDICATED)
    NOTE: This pinpoint test step will attempt to change the fault reported by the RCM by inducing a different fault condition. If the fault reported changes, this indicates the RCM is functioning correctly and is not the source of the fault.
  3. J3 CHECK FRONT IMPACT SEVERITY SENSOR CIRCUIT FOR A SHORT TO GROUND
    • Ignition OFF.
    • Depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Disconnect: RCM C2041A and C2041B.
    • Measure the resistance between front impact severity sensor C1598-1, circuit VR213 (VT/GN), harness side and ground.
      Fig 1: Measuring Resistance Between Front Impact Severity Sensor C1598-1, Circuit VR213 (VT/GN) And Ground
      G06100054Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10, 000 ohms?
    • Yes  : GO to J4.
    • No  : REPAIR circuit VR213 (VT/GN). Refer to appropriate "OEM Connector Repair Procedures" for information. GO to  J11.
  4. J4 CHECK FOR A SHORT BETWEEN FRONT IMPACT SEVERITY SENSOR CIRCUITS
    • Measure the resistance between front impact severity sensor C1598-1, circuit VR213 (VT/GN), harness side and C1598-2, circuit RR129 (YE/GY), harness side.
      Fig 2: Measuring Resistance Between Front Impact Severity Sensor C1598-1, Circuit VR213 (VT/GN) And C1598-2, Circuit RR129 (YE/GY)
      G06063750Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10, 000 ohms?
    • Yes  : GO to  J9.
    • No  : REPAIR circuits VR213 (VT/GN) and RR129 (YE/GY). Refer to appropriate "OEM Connector Repair Procedures" for information. GO to  J11.
  5. J5 CHECK THE LEFT FRONT IMPACT SEVERITY SENSOR AND RCM CONNECTIONS (NO OPERATION INDICATED)
    • Ignition OFF.
      WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
    • Inspect the front impact severity sensor connector to be fully seated and locked. Seat and lock connector as necessary.
    • Gain access to the RCM and inspect C2041A and C2041B to be fully seated and locked. Seat and lock the connector(s) as necessary. Refer to RESTRAINTS CONTROL MODULE (RCM) .
    • Ignition ON.
    • Enter the following diagnostic mode on the scan tool: Self Test - RCM.
    • Was DTC B0090:93 retrieved on-demand during self-test?
    • Yes  : GO to J6.
    • No  : Fault corrected. GO to  J11.
  6. J6 CHECK THE FRONT IMPACT SEVERITY SENSOR CIRCUITS FOR A SHORT TO VOLTAGE (NO OPERATION INDICATED)
    • Ignition OFF.
    • Depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Disconnect: Front Impact Severity Sensor C1598.
    • Disconnect: RCM C2041A and C2041B.
    • Repower the SRS. Do not  prove out the SRS at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Ignition ON.
    • Measure the voltage between front impact severity sensor:
      • C1598-1, circuit VR213 (VT/GN), harness side and ground.
      • C1598-2, circuit RR129 (YE/GY), harness side and ground.
        Fig 3: Checking Front Impact Severity Sensor Circuits For Short To Voltage
        G06063751Courtesy of FORD MOTOR CO.
    • Is voltage present on either circuit?
    • Yes  : REPAIR circuit VR213 (VT/GN) or RR129 (YE/GY). Refer to appropriate "OEM Connector Repair Procedures" for information. GO to  J11.
    • No  : GO to J7.
  7. J7 CHECK THE FRONT IMPACT SEVERITY SENSOR CIRCUITS FOR AN OPEN (NO OPERATION INDICATED)
    • Ignition OFF.
    • Depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Measure the resistance between RCM C2041B, harness side and front impact severity sensor C1598, harness side using the following chart:
      RCM Circuit Front Impact Severity Sensor
      C2041B-27 VR213 (VT/GN) C1598-1
      C2041B-28 RR129 (YE/GY) C1598-2

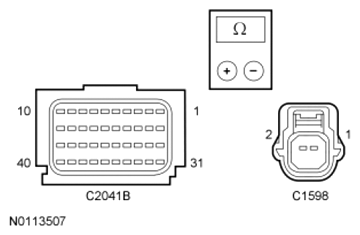

      Fig 4: Measuring Resistance Between RCM C2041B And Front Impact Severity Sensor C1598
      G07477408Courtesy of FORD MOTOR CO.
    • Are the resistances less than 0.5 ohm?
    • Yes  : GO to J8.
    • No  : REPAIR circuit VR213 (VT/GN) or RR129 (YE/GY). Refer to appropriate "OEM Connector Repair Procedures" for information. GO to  J11.
  8. J8 CHECK THE LEFT FRONTAL RESTRAINTS SENSOR DTC FOR A FAULT STATUS CHANGE (NO OPERATION INDICATED)
    NOTE: This pinpoint test step will attempt to change the fault reported by the RCM by inducing a different fault condition. If the fault reported changes, this indicates the RCM is functioning correctly and is not the source of the fault.
    • Connect: RCM C2041A and C2041B.
    • Connect a fused jumper wire between front impact severity sensor C1598-1, circuit VR213 (VT/GN), harness side and circuit C1598-2, circuit RR129 (YE/GY), harness side.
    • Repower the SRS. Do not  prove out the SRS at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Ignition ON.
    • Enter the following diagnostic mode on the scan tool: Self Test - RCM.
    • Did the on-demand DTC change from B0090:93 to B0090:11?
  9. J9 CONFIRM THE RCM FAULT
    NOTE: Make sure all restraint system components and the RCM electrical connectors are connected before carrying out the self-test. If not, DTCs will be recorded.
    • Ignition OFF.
    • Depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Prior to reconnecting any previously disconnected SRS component:
      • inspect connector(s) (including any in-line connectors) for pushed out, loose or spread terminals and loose or frayed wire connections at terminals.
      • inspect wire harness for any damage, pinched, cut or pierced wires.
      • inspect C2041A and C2041B Connector Position Assurance (CPA) lever/lock for correct operation. Refer to RESTRAINTS CONTROL MODULE (RCM) .
      • repair any concerns found. Refer to appropriate "OEM Connector Repair Procedures" for information.
    • Connect: RCM C2041A and C2041B.
    • Connect: Front Impact Severity Sensor C1598.
    • Repower the SRS. Do not  prove out the SRS at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Enter the following diagnostic mode on the scan tool: Self Test - RCM.
    • Was the original DTC retrieved on-demand during self-test?
    • Yes  : INSTALL a new RCM. REFER to RESTRAINTS CONTROL MODULE (RCM) . GO to  J11.
    • No  : In the process of diagnosing the fault, the fault condition has become intermittent. Do not install any new SRS components at this time. SRS components should only be installed when directed to do so in the pinpoint test  . GO to  J10.
  10. J10 CHECK FOR AN INTERMITTENT FAULT
    • Ignition OFF.
    • Depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Disconnect: Front Impact Severity Sensor C1598.
    • Disconnect: RCM C2041A and C2041B.
    • Inspect for the following:
      • inspect harness and component connectors for pushed out, loose or spread terminals and loose or frayed wire connections at terminals.
      • inspect wire harness for any damage, pinched, cut or pierced wires.
      • inspect RCM C2041A and C2041B CPA lever/lock for correct operation. Refer to RESTRAINTS CONTROL MODULE (RCM) .
      • repair any concerns found. Refer to appropriate "OEM Connector Repair Procedures" for information.
    • Connect: All Previously Disconnected Component(s)/Connector(s).
    • Repower the SRS. Do not  prove out the SRS at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Ignition ON.
    • Enter the following diagnostic mode on the scan tool: Self Test - RCM.
    • Was DTC B0090:11 or B0090:93 retrieved on-demand during self-test?
    • Yes  : This fault cannot be cleared until it is corrected and the DTC is no longer retrieved on-demand during self-test.

      For DTC B0090:11, GO to  J2.

      For DTC B0090:93, GO to  J5.

    • No  : The fault is not present and cannot be recreated at this time. Do not install any new SRS components at this time. SRS components should only be installed when directed to do so in the pinpoint test  . GO to  J11.
  11. J11 CHECK FOR ADDITIONAL SRS DTCs
    • Ignition OFF.
      WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
    • Reconnect all SRS components (if previously disconnected).
    • If previously directed to depower the SRS, repower the SRS. Do not prove out the SRS at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Ignition ON.
    • Enter the following diagnostic mode on the scan tool: Self Test - Restraints.
      NOTE: When selecting Restraints from the Self Test menu, DTCs will be retrieved from the RCM and Occupant Classification System Module (OCSM).
    • Was the original DTC retrieved on-demand during self-test?
    • Yes  : Do not clear any DTCs until all DTCs have been resolved. GO to the DTC CHARTS  for pinpoint test direction.
    • No  : CLEAR all RCM and OCSM CMDTCs. PROVE OUT the SRS. The repair is complete. RETURN the vehicle to the customer.
